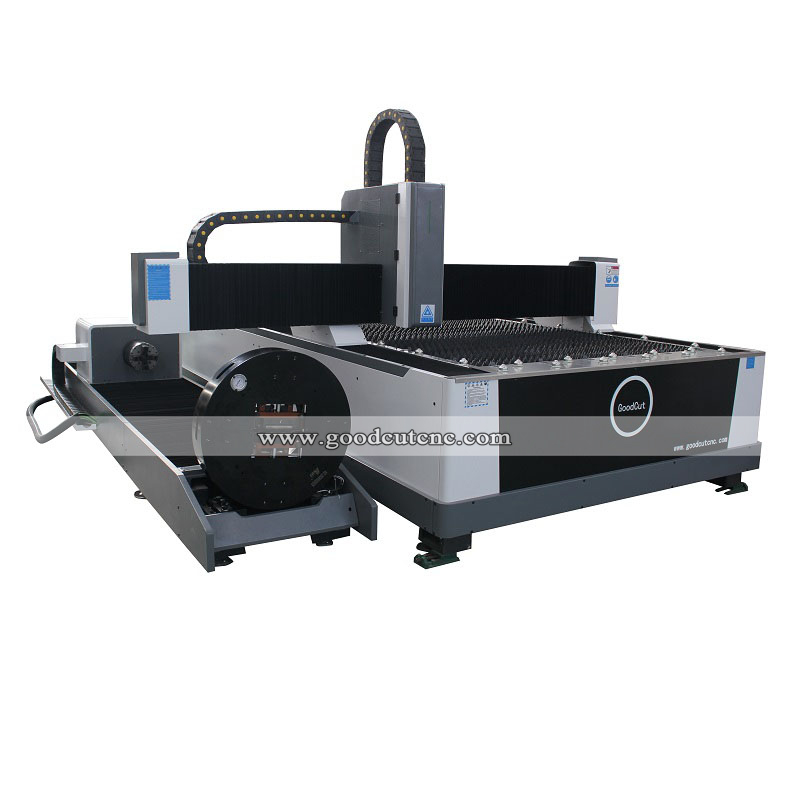

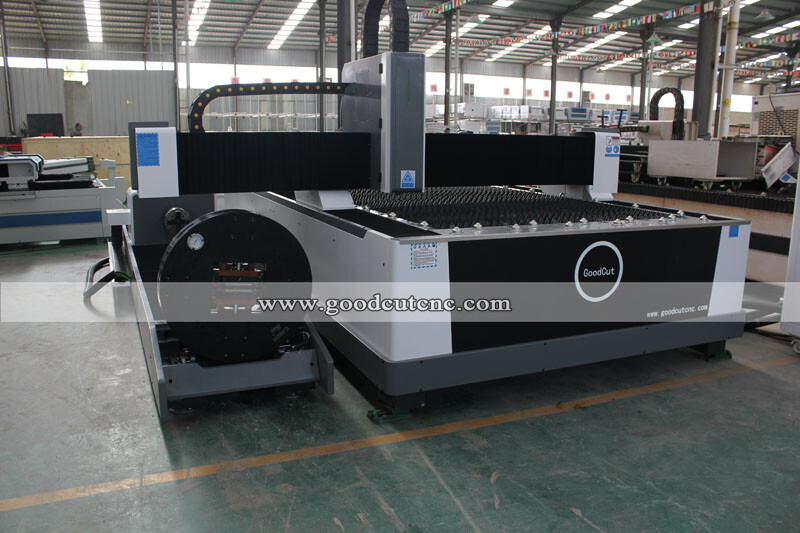

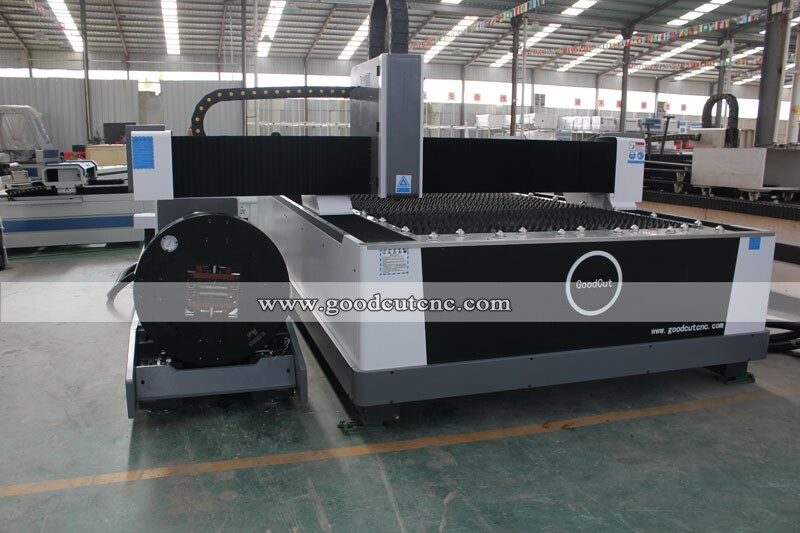

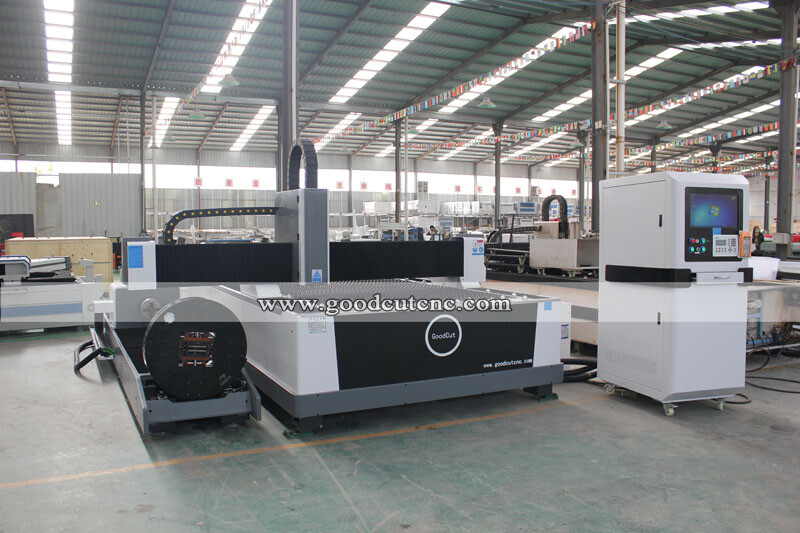

GC1530FR Fiber Laser Cutting Machine with Rotary for Plate and Tube Cutting

Parameter:

Feature:

1. Swiss Raytool brand Auto sensor laser cutting head. With Auto sensor system. Make sure cutting steel which is out of shape.

Inside laser head, with one collimating mirror, one focus lens and protect the mirror. At the bottom with copper nozzle, diameter mainly with

1.5mm diameter.

2.With CYPCUT Control system and software with the English language, applicable insert files with DXF Or AI format. Drawing in the software is

also okay. Software with fly cutting mode for cutting the same products to save time. With Nesting function, automatic compose type for saving

materials by saving spaces.

3. When laser head cut metals, there will produce some hot energy in the laser head and laser source. A water chiller is for cooling the mirrors

 and cooling the laser source. The temperature in the water chiller is an auto adjustment, mainly set up with 25-degree around water in chiller

 should be pure water

4. Chinese best brand Raycus laser device 500W-6000W: Applicable for cut high reflect materials like aluminum and copper.

The photoelectric conversion more than 30%, Working environment: 10-40 degrees. Device with air-conditioning to keep it at normal temperature.

5. Gear- rack transmission system which with Germany brand rails. X and Y axis Moving speed can max 80m/min.

6. Big torque Japanese Yaskawa drive motors. Match-able with the transmission system, improve cutting speed and precision

7. At the bottom of the machine, with the collector for saving small cutting pieces. Below collector with wheels, easy push and pull.

8. The purging system is designed inside the machine bed. So make sure the smoke is absorbed immediately after cutting.

 Protect the air environment is also very important.

9. Feeding system with rolls. It is easy to load heavy sheet and metal sheets can be protected by avoiding scratched

10. Gear-rack and guide rails after using some time always need to be maintained by injecting oils to make sure the machine keeps

moving fluently and in good precision.

11. X-axis beam is aircraft-grade aluminum casting, replace of the welded steel gantry, more light-footed to make the whole machine working very fast.

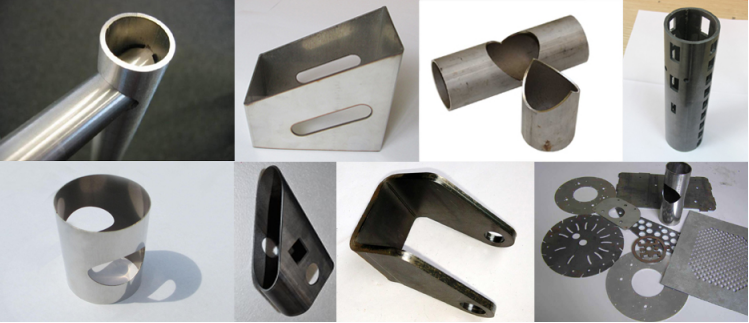

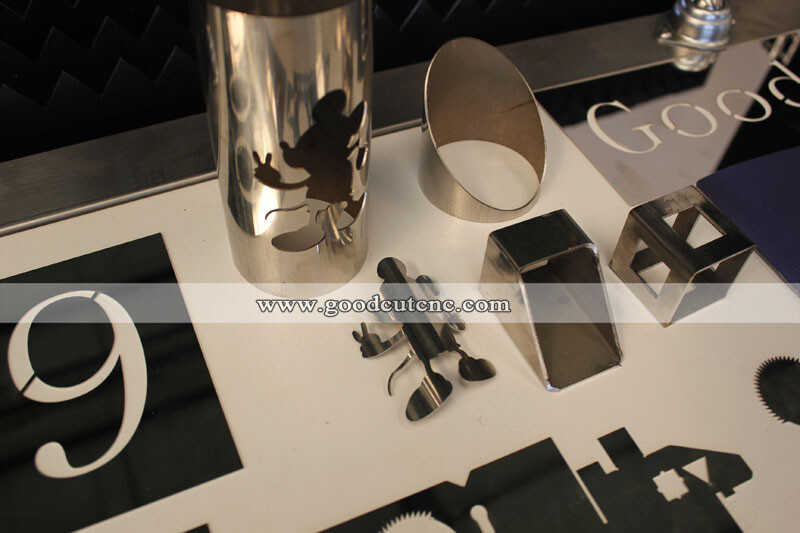

Application:

1.Widely used in cutting carbon steel,manganese steel,spring steel,stainless steel,titanium alloy,galvanized sheet,aluminum plate,brass copper

and other metal plate material.

2.Used for metal round,square tube,such as carbon steel,manganese steel,spring steel,stainless steel,titanium alloy,galvanized sheet Aluminum plate,

brass,copper.

3.Ultra-high type,special metal material cutting.
