GoodCut Freescan UE7 UE11 3D Laser Scanner with High Precision
3d laser scanner
Good price
High precision
High speed
Product description: 3D laser scanner Freescan UE7 UE11 Blue light High precision
Iquiry
Contact
Product Description

GoodCut Freescan UE7 UE11 3D Laser Scanner with High Precision


As the blue laser handheld 3D scanner of the FreeScan series, FreeScan UE inherits the iconic features of "high accuracy" and "high precision". At the same time ergonomic and lightweight equipment design, make it easier to hold and operate, providing metrology-grade, high-accuracy inspection solutions for the automotive, transportation, aerospace industry, moulding inspection, energy generation, machinery manufacturing and etc.

Parameter:


Product ModelFreeScan UE7FreeScan UE11
Scan ModeMultiple Lines Scan, Single Line Scan
Scan AccuracyUp to 0.02mm
Volumetric Accuracy0.02 mm+0.04 mm/m
Volumetric Accuracywith DigiMetric*0.02 mm + 0.025 mm/m
Scan Speed650,000 points/s1,020,000 points/s
Working Distance500m
Scan Depth(Depth of Field)300mm-700mm
Max. Scan Range510mm x 520mm
Point Distance0.05mm-3mm
Light Source14 lines+1 line blue laser22 lines +1 line blue laser
Laser ClassClass 2M (eye safe)
Connection StandardUSB 3.0
Dimensions298mm x 90mm x 74.5mm
Weight670g
PoweringDC: 12V, 5.0A
Operating Temperature Range0 °C-40 °C
Operating Humidity Range10%-90%
CertificationsCE, FCC, ROHS, WEEE
Inspection ModuleCompatible with multiple inspection software solutions such as EINSEN SE Q, Geomagic Control X/Control X Essentials, Polyworks, Catia etc.
Output FormatsOBJ ; STL ; ASC ; PLY ; P3 ; 3MF
Data Compatibility Software3D System (Geomagic Solutions), InnovMetric Software (PolyWorks), Dassault Systemes (CATIA V5 & SolidWorks),PTC (Pro/E NGINEER), Siemens (NX & Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage) etc.
Recommended Computer ConfigurationOS: Win10, 64 bit; Graphics Card: NVIDIA GTX/RTX seriescards, high er or equal to GTX 1080; GPU Memory: ≥4G; Processor: I7-8700; Memory: ≥32GB

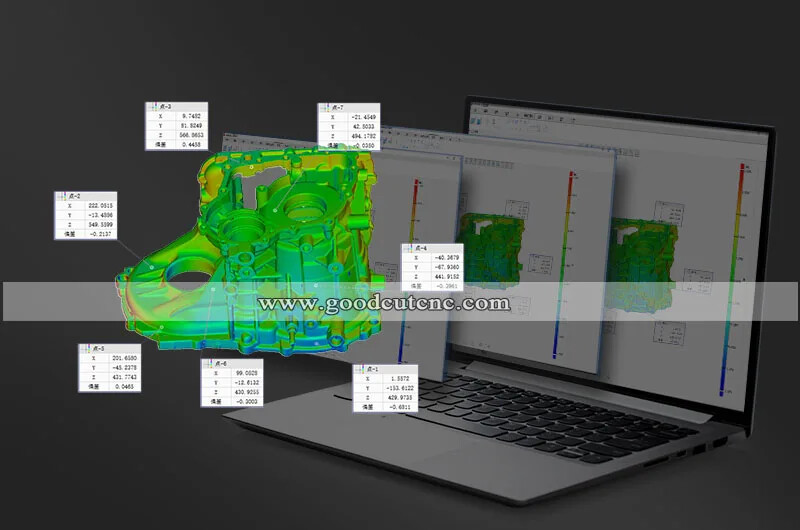

The device weights only 750g, facilitating handheld scanning more easily and avoiding fatigue due to long working time.

Freescan UE7 UE11 3D Laser Scanner-8.jpg

Supporting the scan of black and reflective surfaces to accommodate a wider range of scanning applications.

Freescan UE7 UE11 3D Laser Scanner-5.png

The scan area can reach 510*520mm, providing larger field of view for a smoother and more efficient scanning experience.

Freescan UE7 UE11 3D Laser Scanner-3.jpg

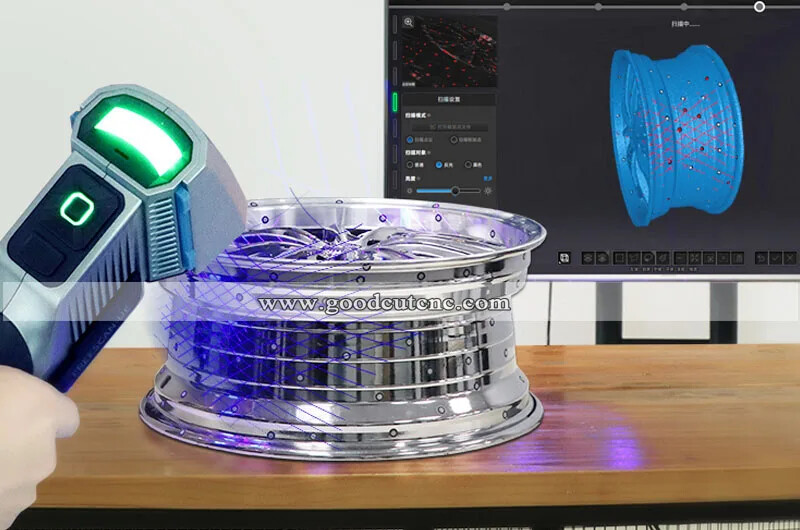

User-friendly operating system with simple software setup and guidance through the whole workflow process, allowing users to master the operation at ease.

Freescan UE7 UE11 3D Laser Scanner-10.jpg

Freescan UE7 UE11 3D Laser Scanner-2.jpg
