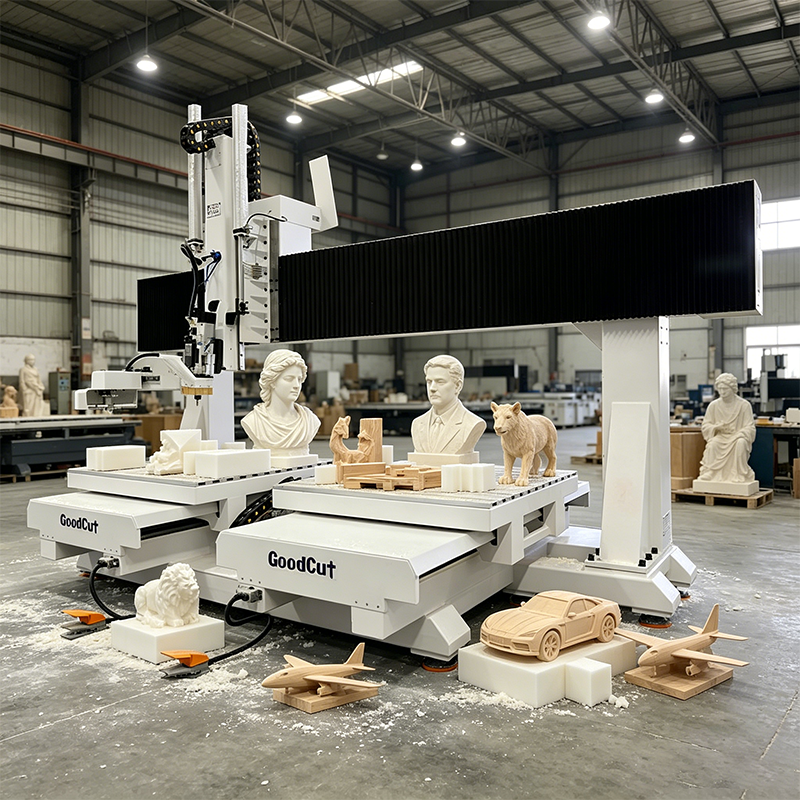

GC1012-5AD Double Workpiece/ Double process/ double milling process CNC Router Machine For Wood Foam EPS

wokr size: 1000×1200*600mm per table
5 axis Demas head
10kw HITECO spindle
Double table
Product description: double milling process CNC Router Machine
Product Description


双工位4 axis 5 aixs (14)

双工位4 axis 5 aixs (5)

双工位 4 axis 5 aixs (7)

双工位 4 axis 5 aixs (2)

GC1325D 5 Axis(3).jpg

Parameter:

DescriptionParameter
ModelGC1012-5AD
Effective strokeDouble table working, 1000*1200*600mm per table
Table structureAluminum alloy with T-slot table
X,Y,Z axis transmissionTaiwan PMI-4040 high-precision ball Screw in XYZ axis
Automatic tool changerDisk type automatic tool changer with 8 pcs tools magazin
X, Y , Z axis sliderTaiwa 30MM square rail and flange slider
Control systemTaiwan Syntec 5 axis control system
Spindle

7.5kw water-cooled spindle*2PCS with 4 cutting heads

(Or 9KW water-cooled 5 axis dedicated spindle for tool change) .

All with RTCP function

Inverter11KW Delta Vector Inverter
Motor and driver1KW Taiwan Large Inertia Syntec Servo motor and driver for X,Y and Z axis
CommandG code
Central gas storage systemYes
Lubrication SystemAutomatic central oil lubrication device
Tool magazine8 tool changing positions or 4tools on the cross axisWarranty
Warranty2 Years with 24h online after sales technical support


双工位 4 axis 5 aixs (10)

双工位 4 axis 5 aixs (9)

双工位 4 axis 5 aixs (8)


Wood furniture industry:

Doors, Cabinets, Tables, Chairs, Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior

doors, sofa legs, headboards, and so on.


Advertising industry:


Signage, Logo, Badges, Display board, Meeting signboard, Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.


Application Industry:

Mold industry: various large metalloid mould, especially suitable for automotive foam mold, wooden ship model, wooden model aviation,

rail wooden mold, wooden mold train.


Instrument industry:

3d surface engraving and shape cutting of large-scale instruments.


Others:

Relief sculpture and 3D engraving and cylindrical object.
