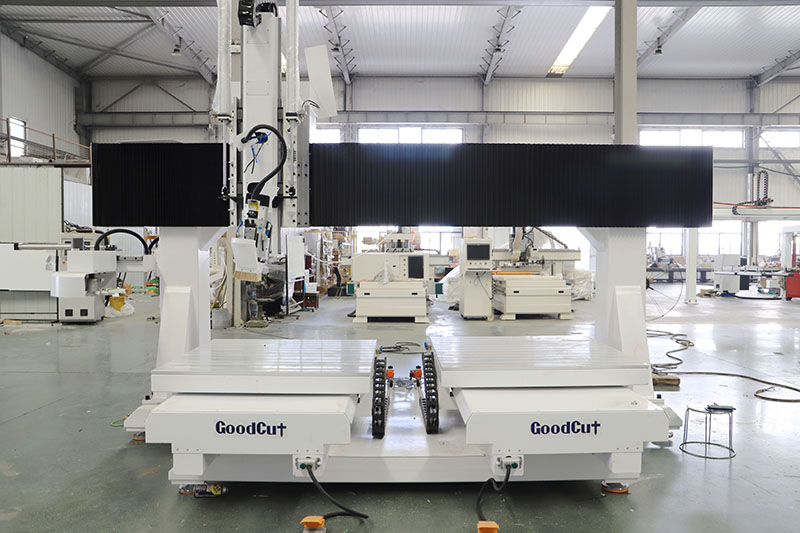

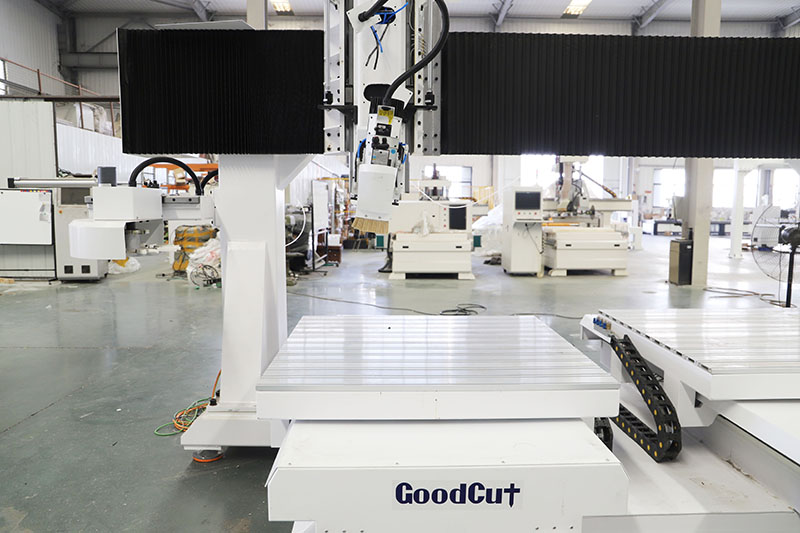

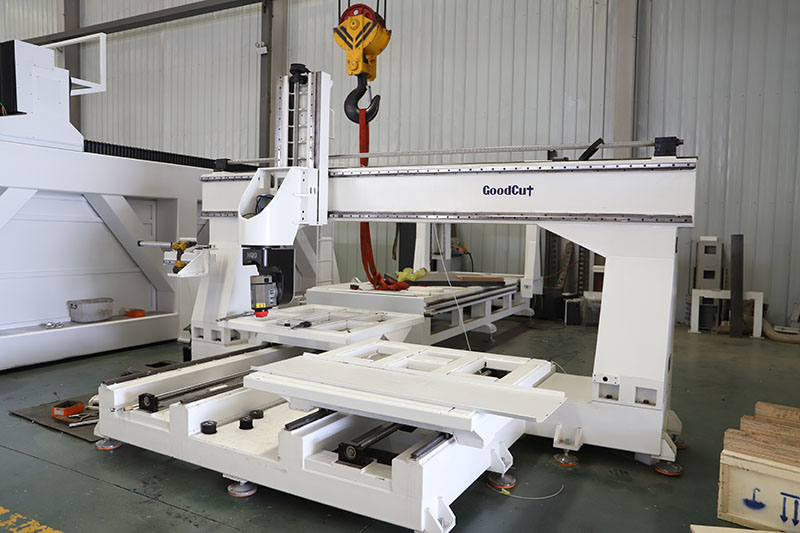

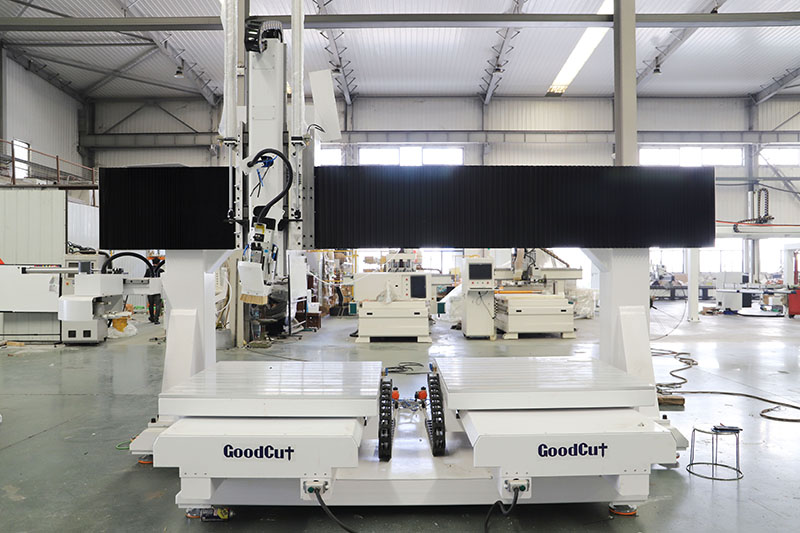

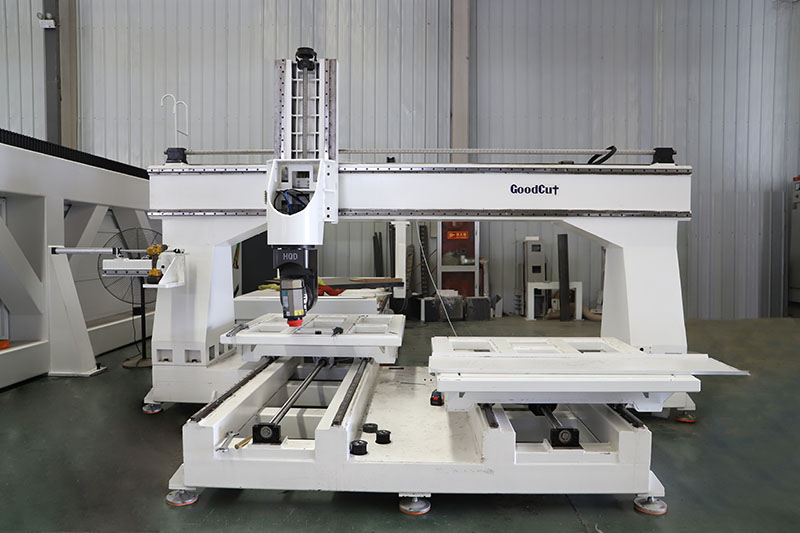

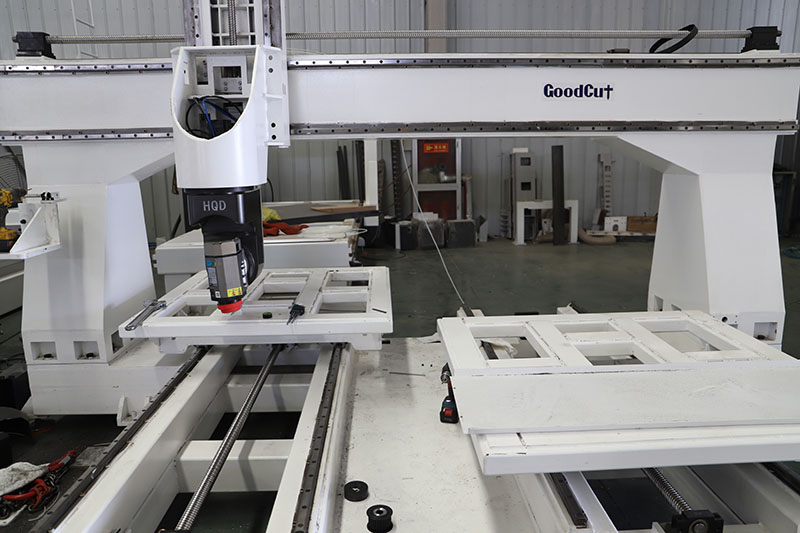

GC1325- 5 Axis Double Workpiece/ Double process/ double milling process CNC Router Machine For Wood Foam EPS

1300*2500*1000mm

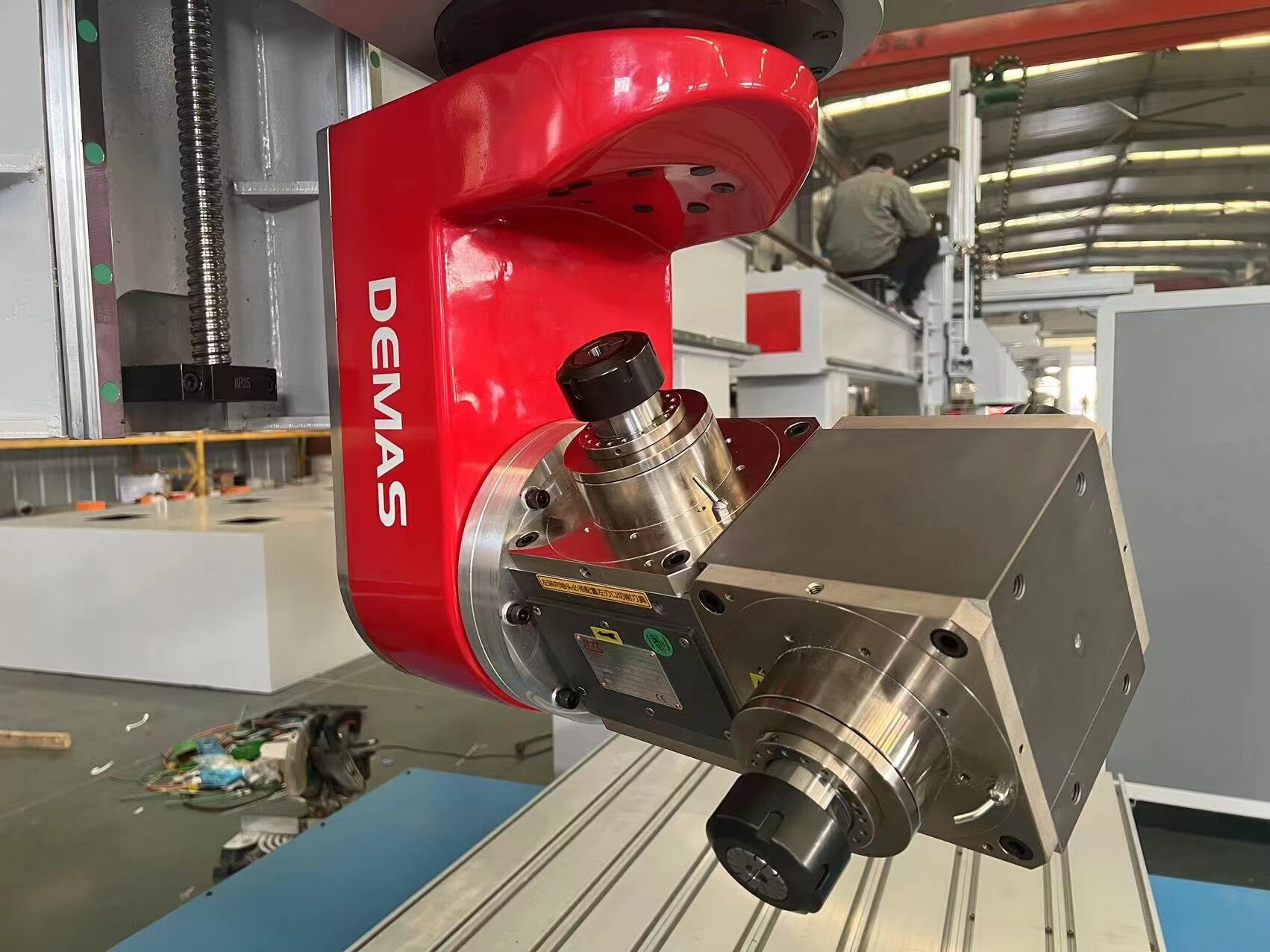

5 axis Demas head
10kw HITECO spindle
Double table
Product description: double milling process CNC Router Machine
Product Description


双工位4 axis 5 aixs (14)

双工位4 axis 5 aixs (5)

双工位 4 axis 5 aixs (7)

双工位 4 axis 5 aixs (2)

GC1325D 5 Axis(3).jpg

Parameter:

DescriptionParameter
Effective stroke1220mm*2440mm
Table structureAluminum alloy with T-slot table
X axis transmissionGrinding grade 2M helical gear high-precision rack
Y axis transmissionTaiwan PMI-4040 high-precision ball Screw
Z axis transmissionTaiwan PMI-3210 high-precision ball screw
X, Y , Z axis sliderTaiwan 30mm square rail and flange slider
Control systemTaiwan Syntec 5 axis control system
Spindle

7.5kw water-cooled spindle*2PCS with 4 cutting heads

(Or 9KW water-cooled 5 axis dedicated spindle for tool change) .

All with RTCP function

Inverter11KW Delta Vector Inverter
Motor and driver1KW Taiwan Large Inertia Syntec Servo motor and driver for X,Y and Z axis
CommandG code
Central gas storage systemYes
Lubrication SystemAutomatic central oil lubrication device

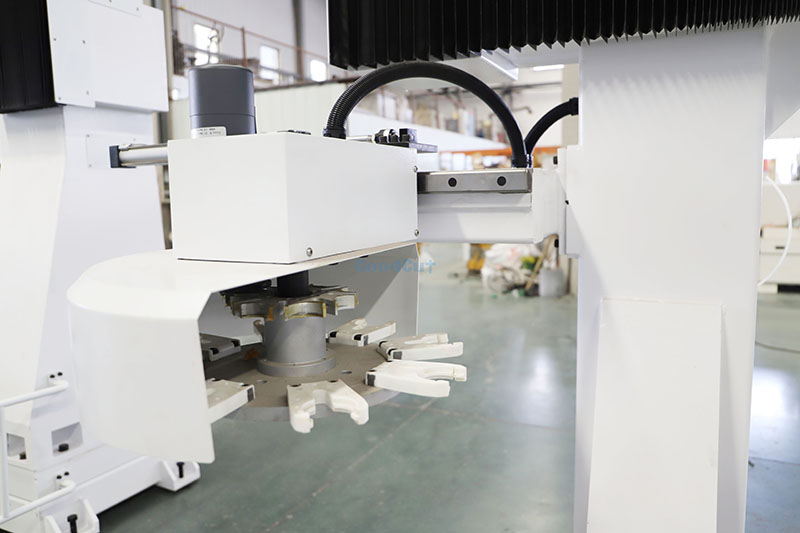

Tool magazine8 tool changing positions or 4 tools on the cross axisWarranty
Warranty2 Years with 24h online after sales technical support


双工位 4 axis 5 aixs (10)

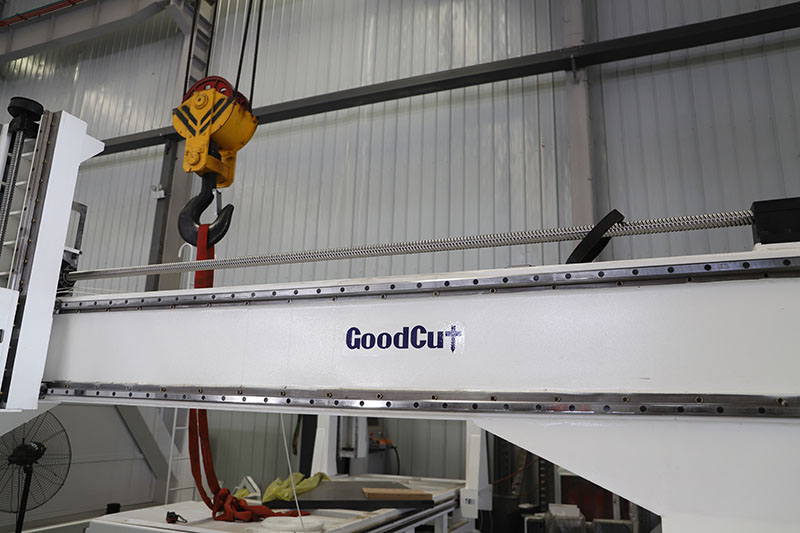

双工位 4 axis 5 aixs (9)

双工位 4 axis 5 aixs (8)


Wood furniture industry:

Doors, Cabinets, Tables, Chairs, Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior

doors, sofa legs, headboards, and so on.


Advertising industry:


Signage, Logo, Badges, Display board, Meeting signboard, Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.


Application Industry:

Mold industry: various large metalloid mould, especially suitable for automotive foam mold, wooden ship model, wooden model aviation,

rail wooden mold, wooden mold train.


Instrument industry:

3d surface engraving and shape cutting of large-scale instruments.


Others:

Relief sculpture and 3D engraving and cylindrical object.
