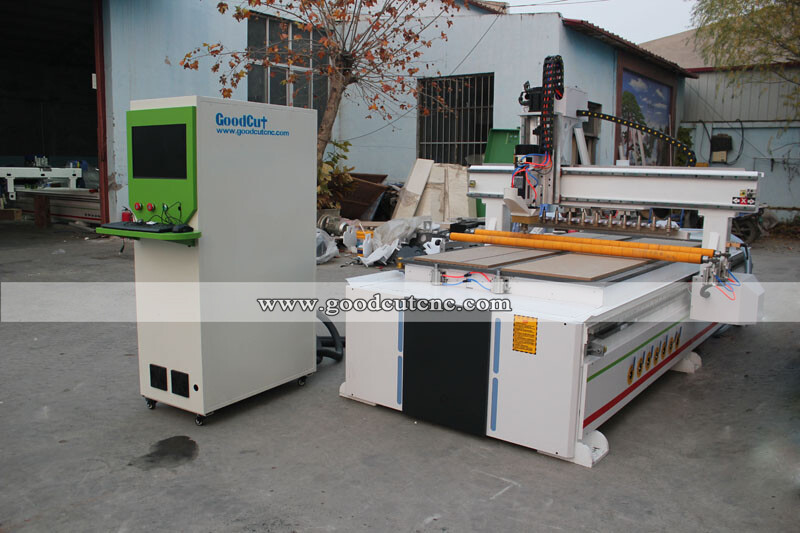

GC1325ATC GoodCut Linnear Atc Cnc Router with Tool Changer for Kitchen Cabinet Door Making
atc linear cnc router
servo motor
vacuum table with T-slot
syntec controler
Product description: 9KW air cooling spindle TaiWan Syntec control system vacuum adsorb table with T-slot servo motor delta inverter
Product Description

GC1325ATC GoodCut Linnear Atc Cnc Router with Tool Changer for Kitchen Cabinet Door Making

Feature:



1) Ncstudio control system: Popular and easy operation, with USB port to transfer program;

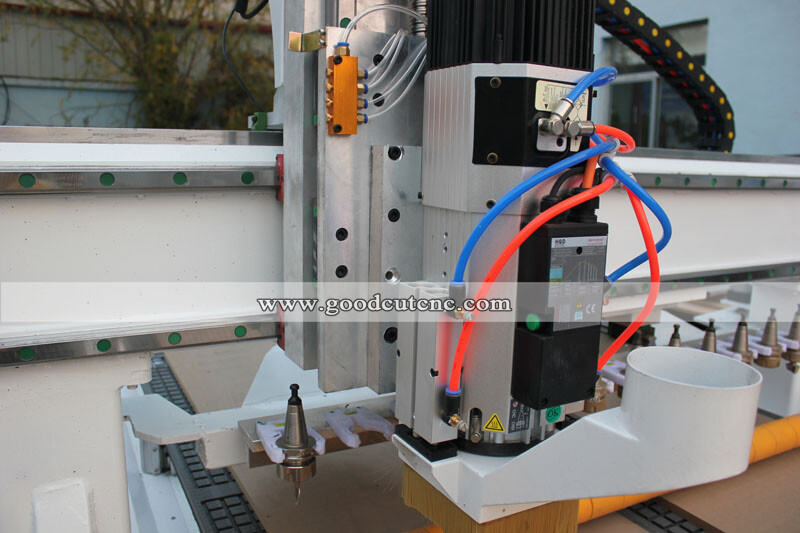

2) China Local Brands HQD air-cooling ATC spindle: Long working life, easy maintenance;



3) Taiwan Delta Servo Driving System: With highly control precision and high speed, reliable and stable;



4) Taiwan Hiwin Guide and Block: Guaranteed genuine rail with good quality,realizing smooth movement;



5) Taiwan TBI ball screw: linear motion with high precision and and in high speed



6) Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater accelaration and feeding rates, longer lifetime because of smaller wearing force.



 7) Taiwan Delta Inverter: Guarantee the variety working speed and protect the spindle very well;



8) Linear tool magazine, with Tool holders x 6pcs and Toolholder fork x 8 pcs, effectively improve working efficiency.




DescriptionParameters
X,Y,Z Working Area1300*2500*300mm

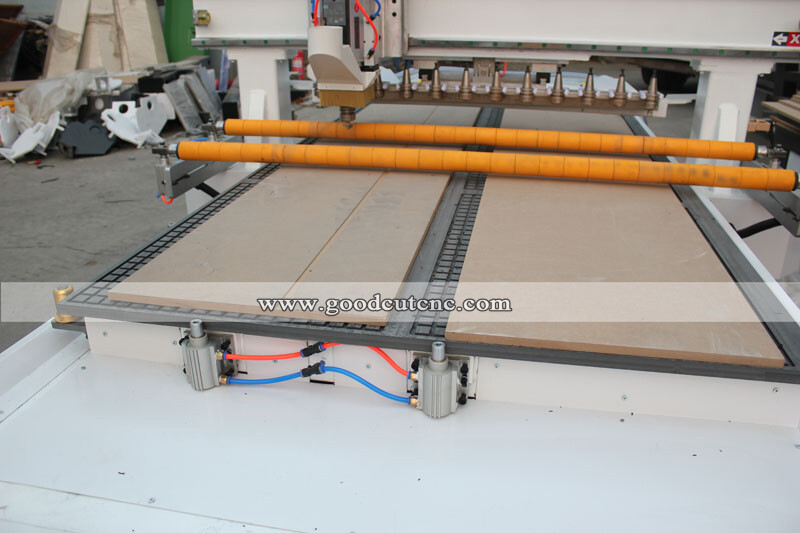

Table SurfaceVacuum with T-slot Table , 7.5kw big power vacuum pump
FrameWelded Structure
X, Y Structure25mm 30mmHIWIN linear guide, helical rack
Z StructureHiwin Rail Linear guide and TBI Ball Screw
Max. Power Consumption(Without Spindle)2.5kw~3kw
Spindle Power9kw HQD or Italy HSD air cooling spindle
Spindle Speed0-24000RPM
Drive Motors850w Leadshine servo motor driver
Working VoltageAC380V/50-60Hz,3PH (Option: 220V/1phase)
Command LanguageG Code
Operating SystemWeihong NK260 system
Inverter11kw DELTA inverter or Fuling
Computer InterfaceUSB
X,Y,Z repositioning Accuracy±0.02mm
X,Y Resolution±0.01mm
Software CompatibilityType3/UcancameV9 Software, (Option: Artcam Software)
Lubrication systemAuto
Tool sensorAuto
Dust collector5.5kw double packages dust collector
ReducerJapanese Shimpo reducer
Optional partsJapanese YASKAWA servo motor,Syntec 6MB controllerRotary device



1. Furniture industry: solidwood doors, composite doors, cabinet doors, interior doors, sofa legs, headboards, antique furniture and superficial flower-shaped engraving of various plate-type furniture and disposable finishing of process.

2. Decorated industry: variety of decorations engraving process such as decorative murals, screens, decorative patterns, three-dimensional wave boards, sound-absorbing panels and so on.

3. Advertising industry: engraving and making for acrylic cutting and engraving, acrylic plastic model making, badges and a variety of logo signs.

4. Arts & crafts industry: sculpture making of arts & crafts such as process relief, shadow carving, craft ornaments, car accessories and so on.

5. Musical instrument industry: headstock processing ,guitar semi-finished products processing, surface sculpture and three-dimensional curved surface making of various musical instruments' decorative patterns.
