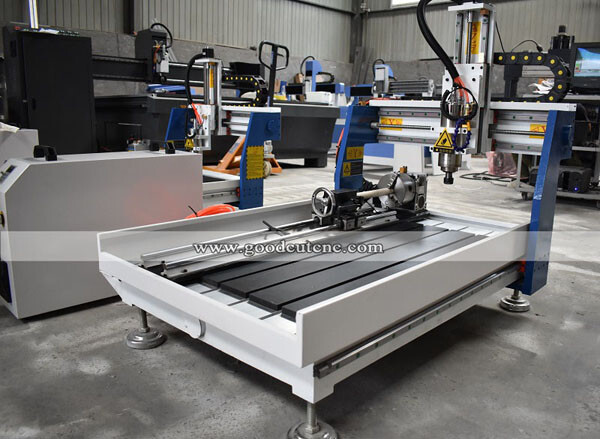

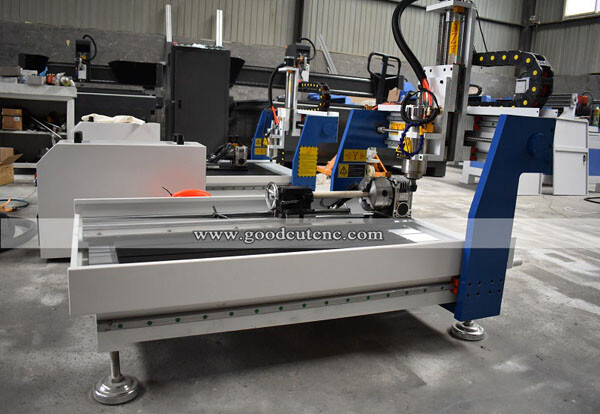

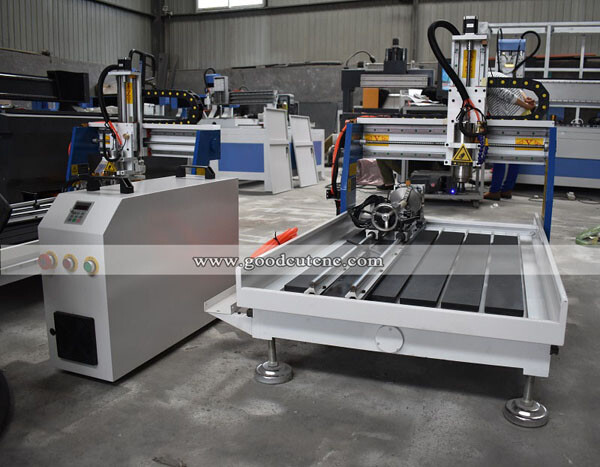

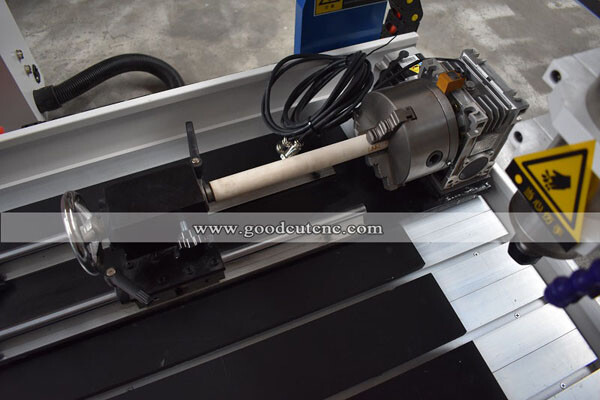

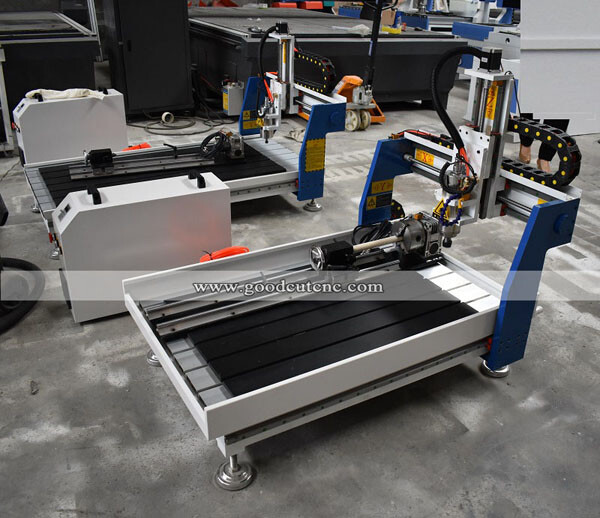

Features of Desktop Machine CNC GC6090D Mini CNC Router For Wooden:
1. Maximum working area: 600*900*150mm
2. 1.5kw top quality water cooling spindle, with 1.5kw high quality inverter
3. Taiwan TBI ball screw for all axis transmission: X, Y 2510 model ball screw, Z axis 1605 model ball screw.
4. Stepper motor: X, Y axis with 86BYG450A model stepper motor, Z axis with 57BYG76 model stepper motor.
5. Drive: Leadshine driver top brand in China.
6. Control system: Mach3 control system.
7. Commond code: G code, HPGL
8. Working speed: 0-15m/min
9. Collet: 3.175-6mm (depending on your spindle power)
10. Type3, Artcam software
11. 220v, 1 phase, 50-60HZ
12. Advanced auto tool sensor
13. Plywood case package
Parameters：
Desktop Machine CNC GC6090D Mini CNC Router For Wooden:
1.Advertising industry, seal industry, craft and gift, art mould, wood working, mould etc. applicable material including on acrylic, double-color board, PVC, ABS board, stone, imitation stone, metal,Aluminum Mold etc.
2.Woodwork industry: sewing machine table, machine cabinet panel, sporting equipment, wooden door etc.
3.Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.
4.Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.
5.Mould industry: architecture, Gilt membrane, electric machinery, high frequency mold, moulding on shoes, badge, embossed mould, biscuit, candy, chocolate mould.
6.Stamp industry: it is easy and convenient to seal on various materials such as ox horn, plastic, organic board, wood etc.
