• Metal CNC Router

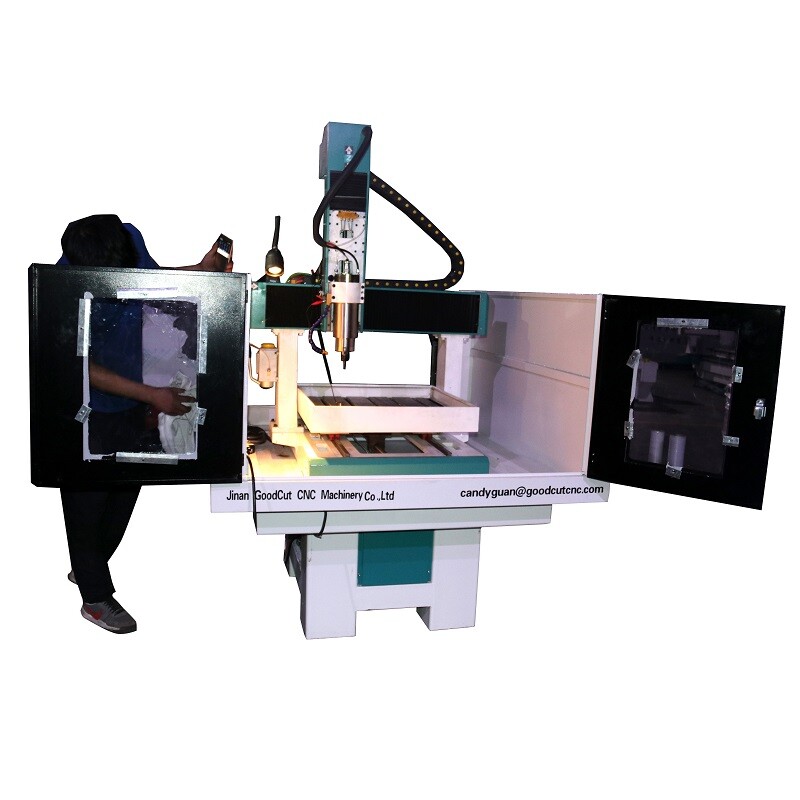

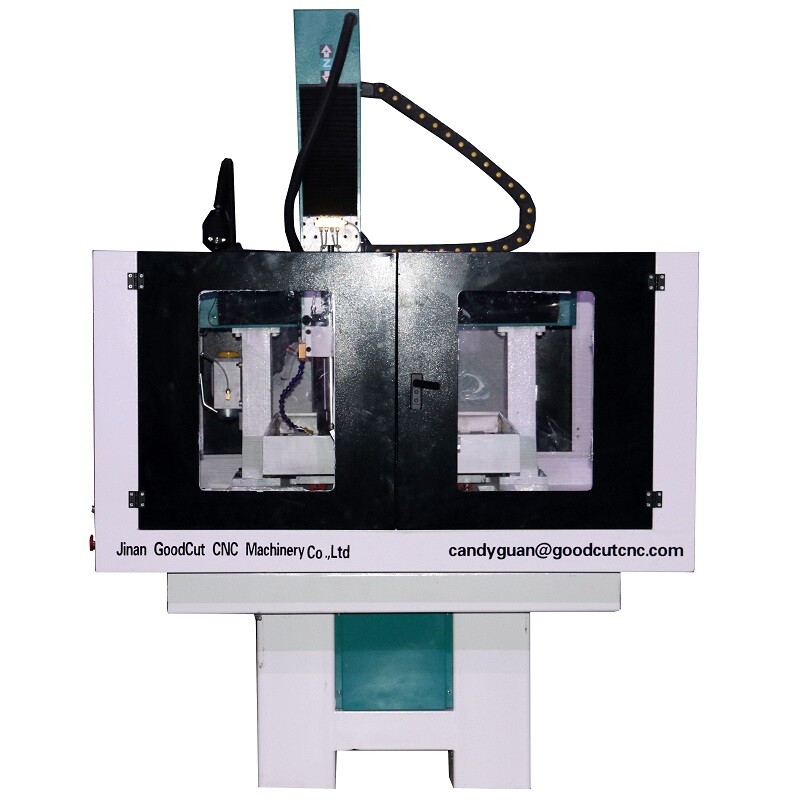

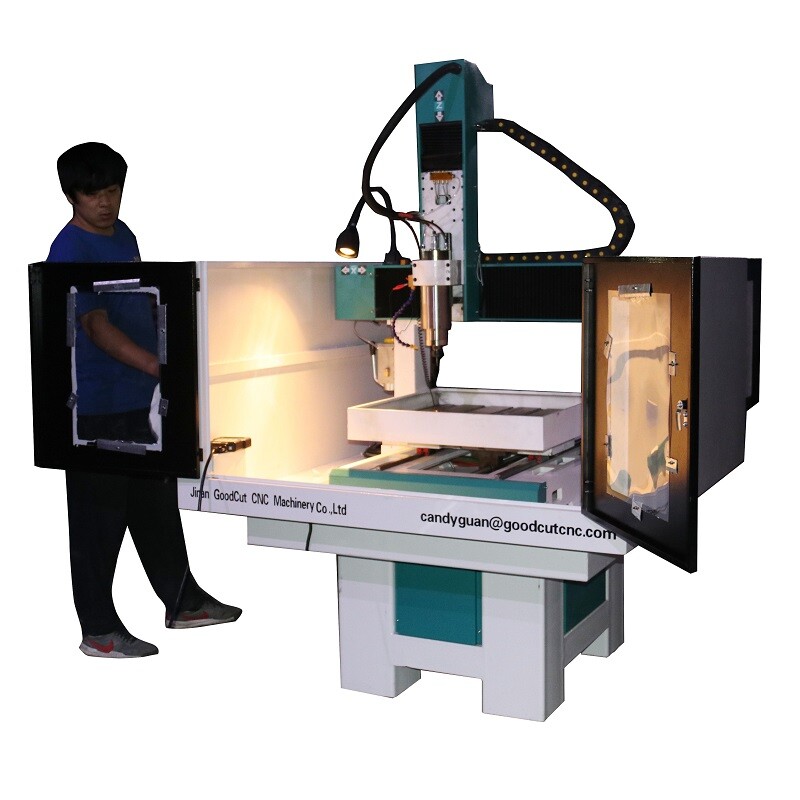

GC4040M GC6060M Mould Making Machine for Aluminum Brass
High pricision
With cover
Grinding screw
For copper aluminum mold
Product description: With cover Grinding screw with high precision For copper aluminum mold
Product Description

GC4040M GC6060M Mould Making Machine for Aluminum Brass

Parameter

Working area400*400*300mm 600*600*300mm ( size can be customized )
TableIntegral cast iron countertophard grey PVCstainless steel water tank
Spindle power2.2-5.5 Constant power water cooled spindle + water cooled
Motor and driverLeadshine 750w servo motor and driver
Control systemDSP A11
TransmissionTBR2505 high precision grinding ball screw from Taiwan
Rail wayTaiwan HIWIN 20mm linear guide
Inverter5.5kw Fuling inverter
Wire  Built-in cabinet, Davos brand high flexible shielding cable, anti-electromagnetic interference,Authentic Omron electronic point switch with filter, Chint electrical components.
structure  Welded bed with square pipe, cast iron integrated gantry column,  Feed height 300mm, integral cast iron table top.
Speed6000-10000 mm/min
SwitchJapanese OMRON Switch
Oil systemManual oil system
Cover  The whole big encircle meal gold
Coupling  High strength grinding coupling
Others  10 metal cutting knives, 2 sets of water pump, plus machine head lamp.



Advantages:

1) The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine’s stability.

2) All axis with TBI ball screw transmission, ensuring the machine fast speed and higher precision.

3) Adopting Taiwan’s high-precision square linear guide, effectively imported the precision of carving.

4) Adopt high speed water cooling motor with invariably power, big torque, strong cutting, high-frequency and long-life.

5) Professional factory with DSP A11 control system, can provider good after sales service and technology support.

6) Good software compatibility, with machine ,we provider Artcam, Aspire, Powermill etc.

7) Available for continuous work for a long time.
