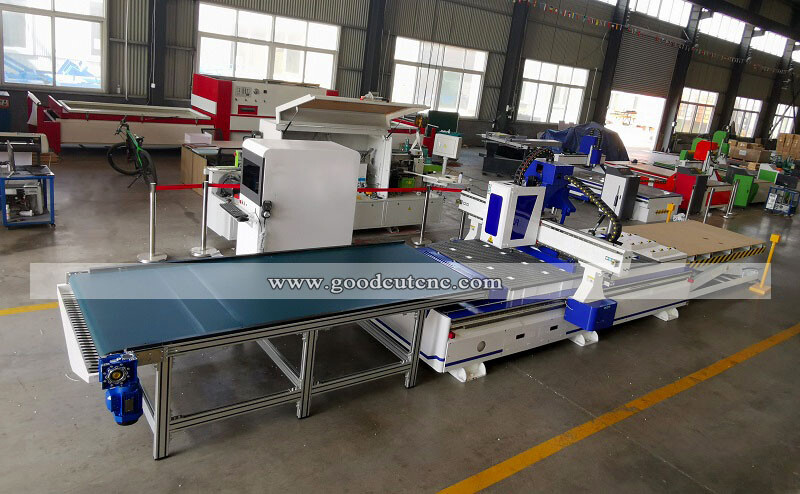

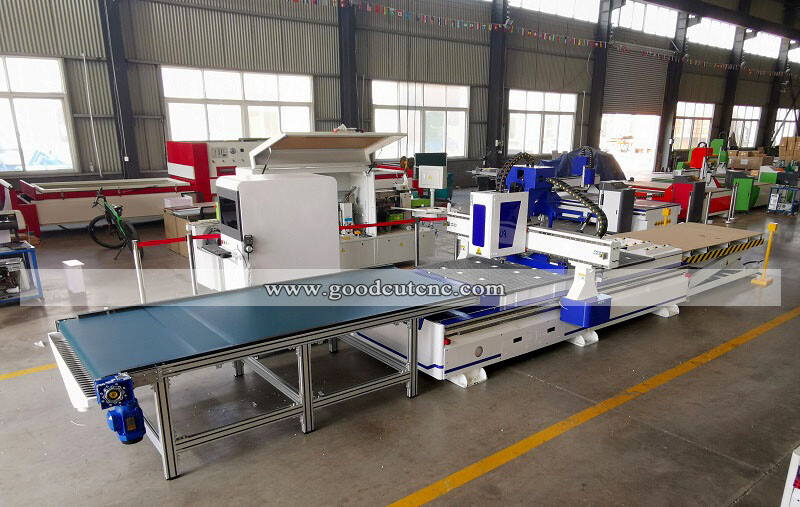

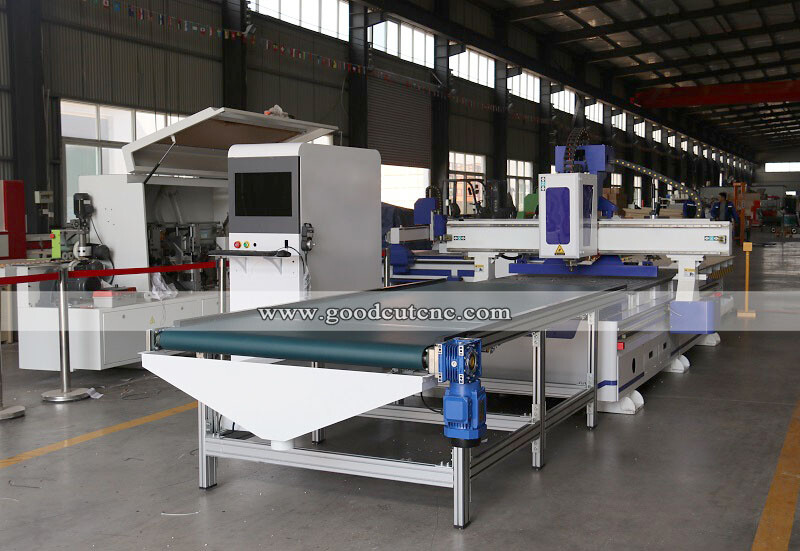

GC1325AF Nesting CNC Router Machine with Auto Load and Unload Device for Woodworking

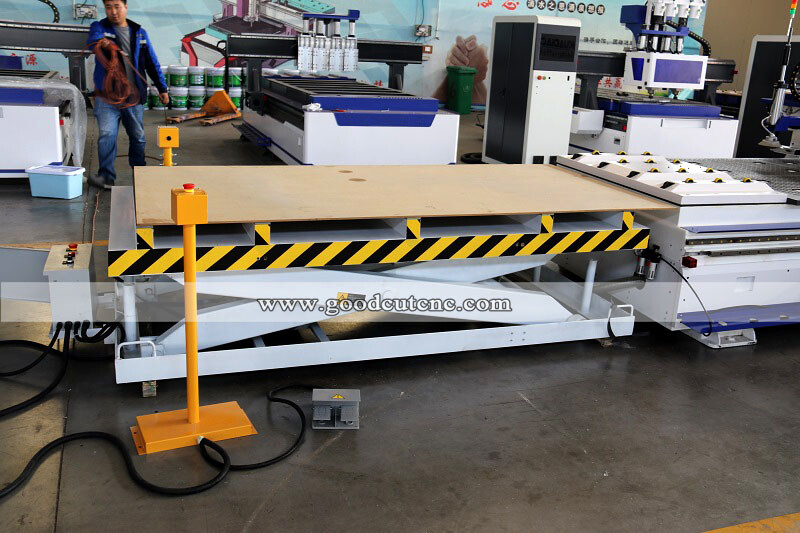

Auto load and unload device
Heavy duty frame

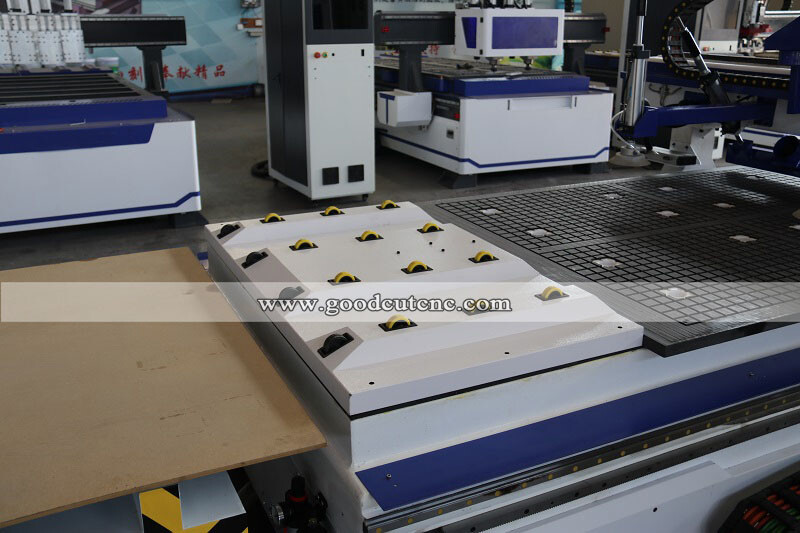

Vacuum absorbed table
1300*2500mm working size
Product description: Auto loading and unloading device, improve working efficiency Servo motor and driver Vacuum table
Product Description

GC1325AF Nesting CNC Router Machine with Auto Load and Unload Device for Woodworking








Parameter:

Machine model
GC1325AF
Working Area(X, Y, Z)1300*2500*200mm
Machine Structure
Heavy duty frame
TableVacuum table with 7.5kw vacuum pump
X,Y,X GuidesTaiwan HIWIM rail guides
Z TransmissionBall screw
Spindel Power9.0kw air cooling
ColletER32
Spindle Speed18000R/min
Max.Traveling Speed75000mm/min
Max.Working  Speed25000mm/min
controller systermTaiwan LNC
Tool Change Stores12 pcs automatic tool change in lina
Positioning Accurary
0.02mm
Processing Accurary0.02mm
Motor And DriverLeadshine 1.5kw Servo Motor and Driver
Auto Lubrication SystemYes
Tool SensorYes
Dust collectorYes
CylinderYes
Working VoltageAC380V,50HZ,3-Phase(220V for optional)
Warranty2 years




GC1325AF- 3.jpg

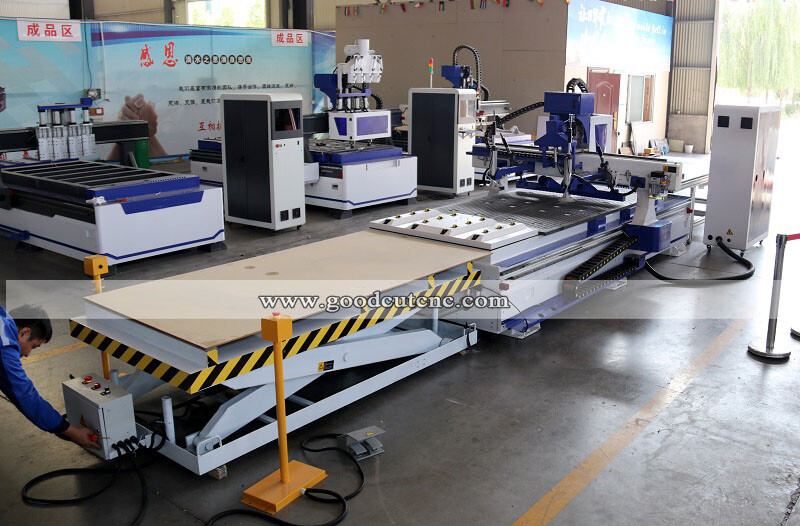

GC1325AF- 4.jpg
