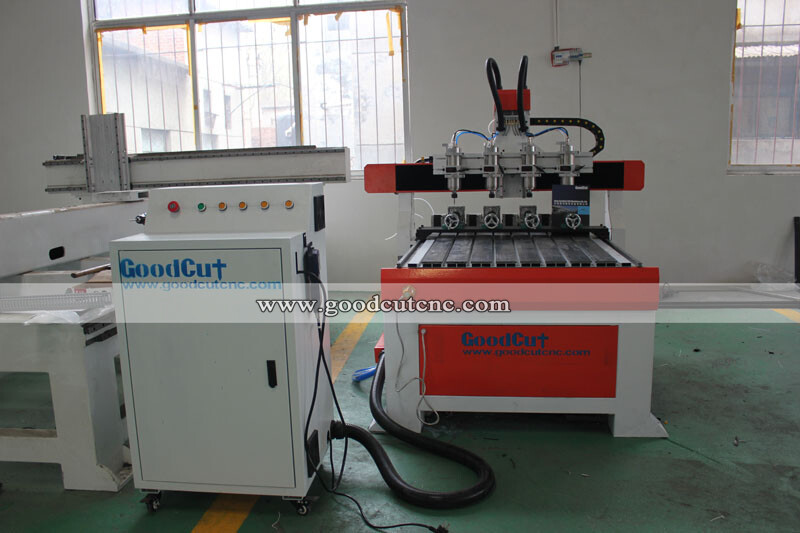

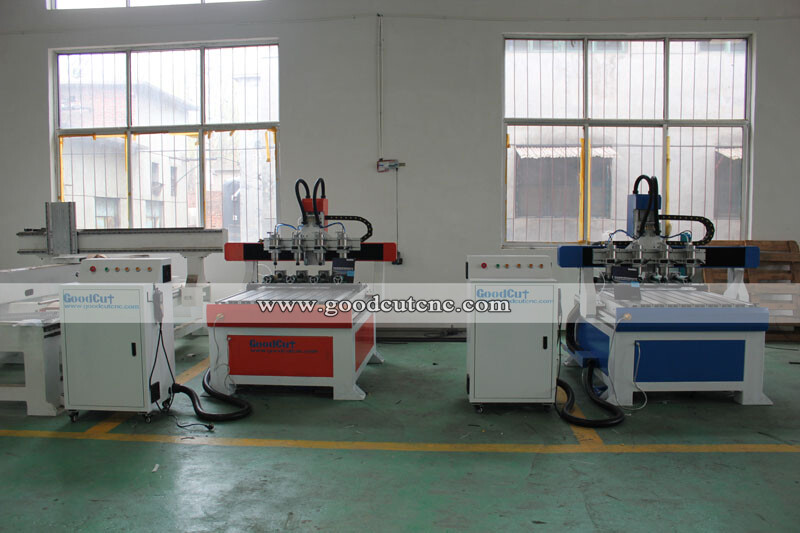

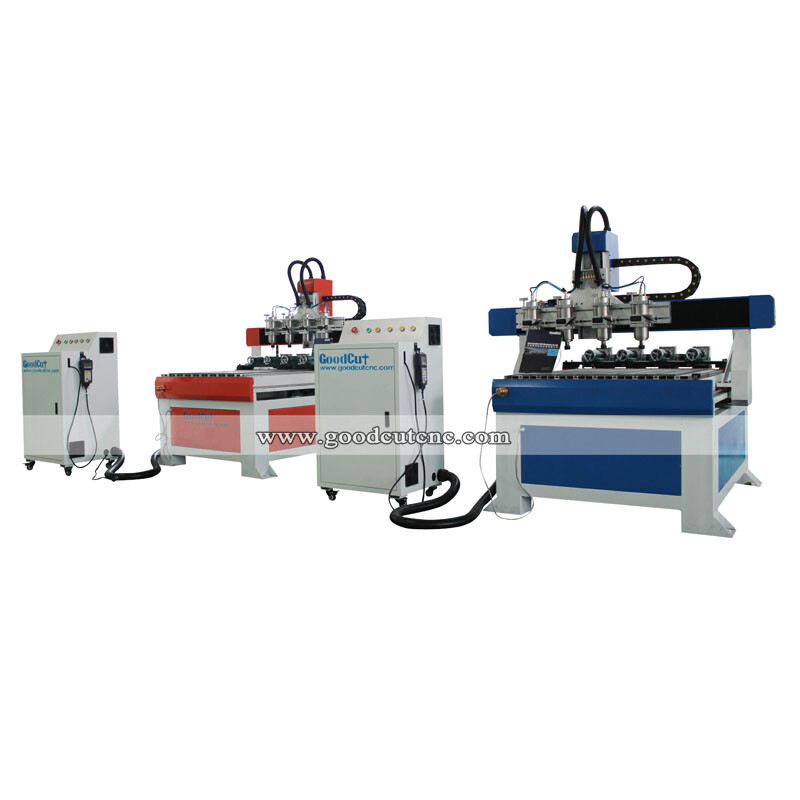

GC6090-4R 4 axis 4 Spindle 4 Rotary Axis Cnc Router Machine For Wood and Legs

Working area: 600*900*250mm

1. Working length: 200mm, Max diameter 100mm

2.Welded with thick seamless steel structure

Solid gantry, well structure of lathe bed, guarantee the machine stability, stable and high speed, high accuracy.

3. High Efficient German Rack gear transmission; X,Y axis Rack and pinion, Z axis German Ball Screw

4. Taiwan Hiwin square guide rail

5. Leadshine hybrid servo motor and driver, guarantee working precision, have no loose step situation

6. BEST Inverter

7. 4*2.2kw water cooling spindle, can work at the same time , so higher efficiency

8. Table moving making the machine can work on both flat and rotary shapes

9. RichAuto 4th Axis A18 DSP handheld Controlling System with USB interface

10. Software:

Along the cnc drouter machine with carved software,advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software.(such as Powermill, UCANCAM, Type3, Artcam,).

1. 4 spindles work in same time, greatly saved time to change tool manually, high efficiency

2. Removable t-slot table, process 2d sculpture with table, 4spindles and rotary axis work together to mill and engrave cylinde 3d wood moulder/statue etc artworks after removing table, multi function

3. Economic cost, standard popular configuration, worthy to buy, very suitable for furniture and woodworking, artwork industry
