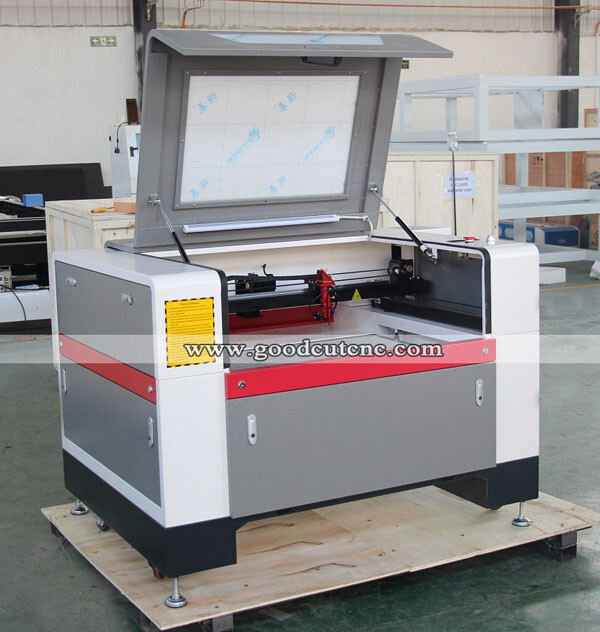

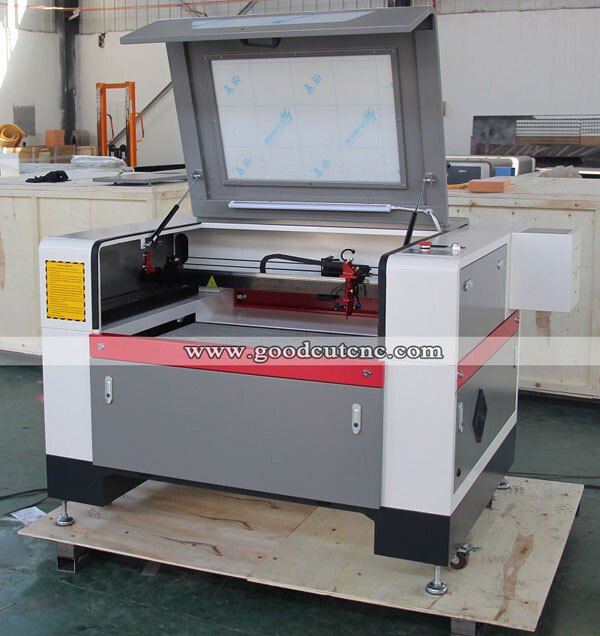

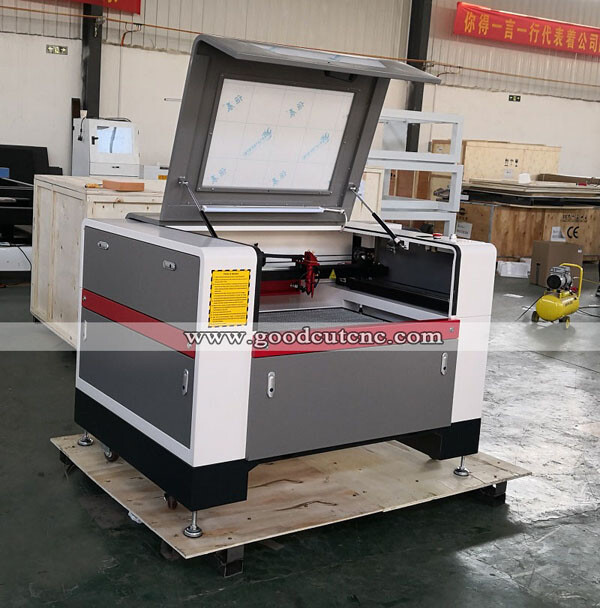

GC6090L Wood Laser Cutter

Parameter:

Advantage:

1. Laser Cutter/Engraver, Water cooling pump and tank, Air Pump, Exhaust blower, Software and Software User Manual, Machine operation Manual, Software User Manual, Trouble Shooting Manual, Communication cable, Power cable, Lenses and Laser tube (80 Watts), Machine operation Manual, USB Communication cable.

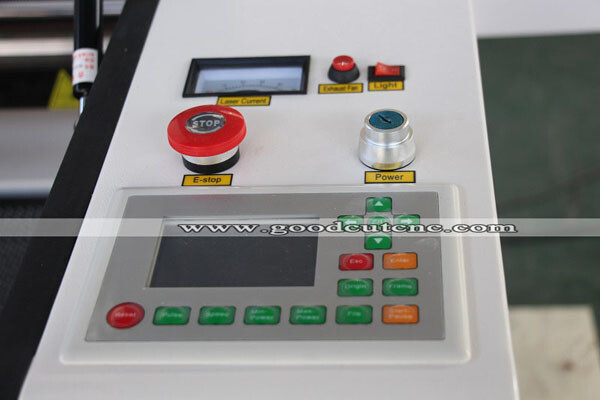

2. Easy to Use LCD Control Panel

User Friendly LCD control panel allows the user to quickly change selected program and modify machine operational conditions. You can Start, Stop, Pause, Reset, Datum, Test Fire, Outline engrave project area, Move the X or Y axis, LCD Viewing Display, Z-Axis up/down, Control Interior light, Emergency Stop, Lockout the operations with the Key.

3. Dedicated Micro Processor Controller for great performance

The heart of the laser machine is the industry leading Ruida controller. The Ruida motion controller is connected to the computer by USB connection. The computer downloads the project to the laser motion controller and it does all the work, leaving the computer and operator free to work on the next project. The dedicated Ruida controller has RAM onboard to store large projects without re-downloading from your computer.

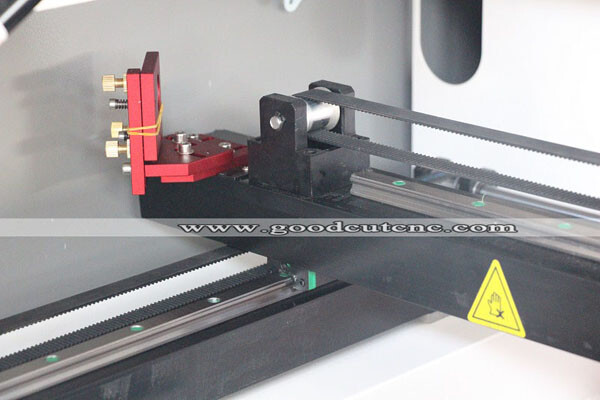

4. Transmission system

The guide liner is Taiwan Hiwin square rail, which is durable, after long time use, it will still have high precision. The belt is Shanghai Fulong brand, it is durable and hard deformed.

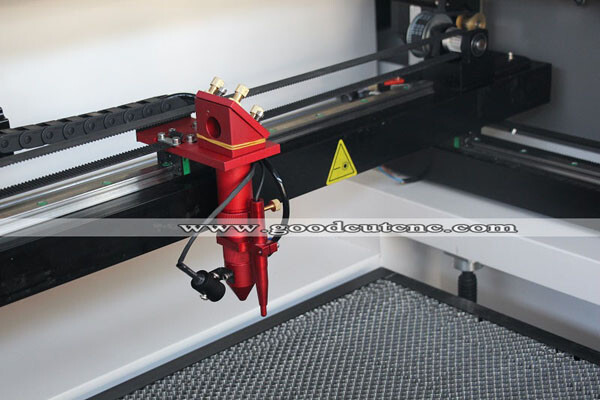

5. Laser Head

GoodCut supply short and long laser head for your choice. short laser head usually for cutting, long laser head usually for engraving.

6. Table

GoodCut supplies blade and honeycomb table for your choice, you can choose according to your requirement.

• Laser power: 80W(other wattages available)
• Engraving area: 900*600mm, 1200*900mm, 1300*900mm, 1400*900mm, 1400*1000mm, 1600*1000mm(other size available)
• Max cutting speed: 0-24,000mm/min
• Location precision: less than 0.01m
• Operating temperature: 0 - 45C
• Minimum shaping character: English 1x1 mm
• Cooling mode: Freon-based chiller and water flow sensor
• Work surface: Iron honeycomb
• Compatible software: TAJIMA, CorelDraw, AutoCAD, Photoshop
• Color separation: Uses color property to set function, speed, and laser power.
