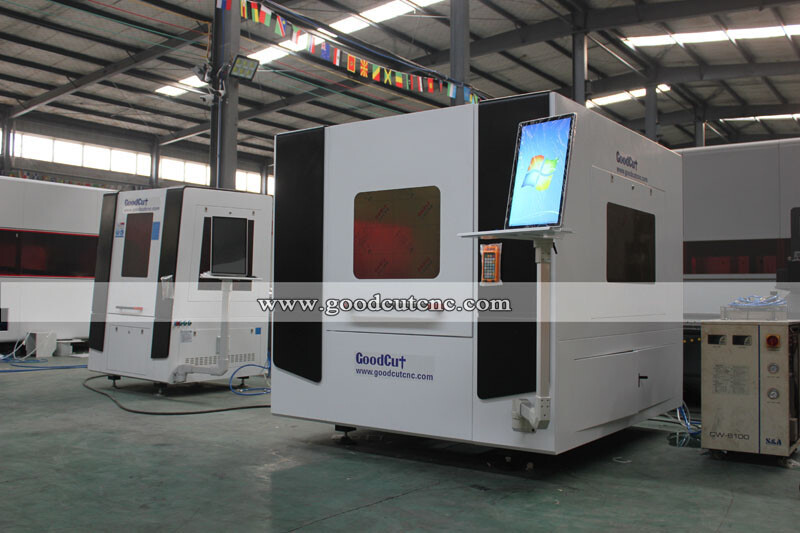

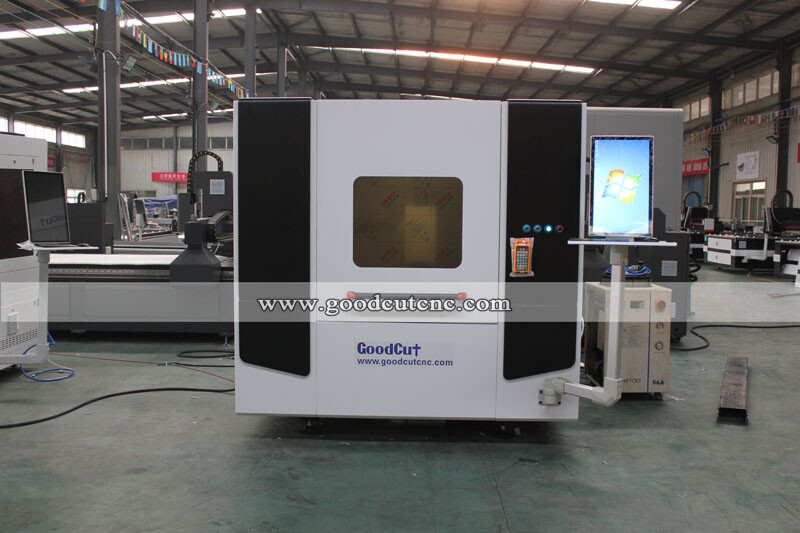

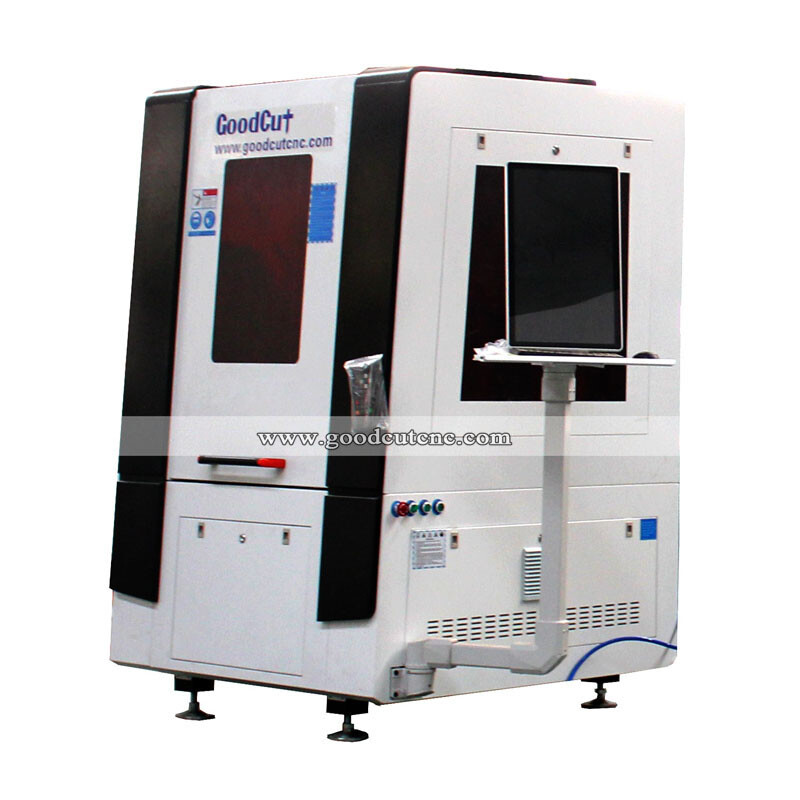

GC3030FC GC4040FC GC6090FC GC1390FC Small Size Fiber Laser Cutting Machine for Metal

 GC3030FC GC4040FC GC6090FC GC1390FC Small Size Fiber Laser Cutting Machine for Metal

Main Feature:

1.Fiber Laser Source: Adopt world famous fiber laser source: German IPG /dometic Raycus, the cutting speed can up to 15-20M/min.

2.Laser Cutting Head: Raytools laser head/WSX laser head with autofocus function, can keep same distance according to metal plate and cutting head during cutting.

3.Working Platform: There is a drawer under the working platform. After metal sheet cutting, the small pieces will fall down into the lower drawer for easy collecting.

4.Cutting Observation Window: The green glass cover window can filter the laser beam, no eye injury and no odor. Environmentally friendly and beautiful.

5. PC Control System: Humanized separate PC control system, PC screen can be rotated 180 degree.

6. Japan Yaskawa Servo Motor & Driving System: Extreme precise positioning;Make moving positioning mechanism operate smoothly;Reliably and free of maintenance

7. Transmission: Y aixs is double grinding precision ball screw and Taiwan Hiwin guide rail; X aixs is  grinding precision ball screw and Taiwan Hiwin guide rail, can ensure the cutting precision and fast speed.

8. Control System: Adopt Cypcut control system, have powerful edit function, can meet a wide range of cutting needs.

Parameter:

Advantage:

1> Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2> High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3> Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4> High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5> Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6> Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7> Easy operations: fiber line transmission, no adjustment of optical path.

8> Safety:fiber laser machine with whole protective cover, more safe.
