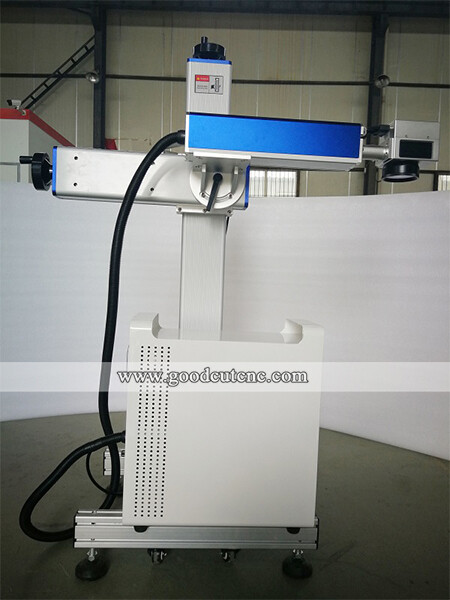

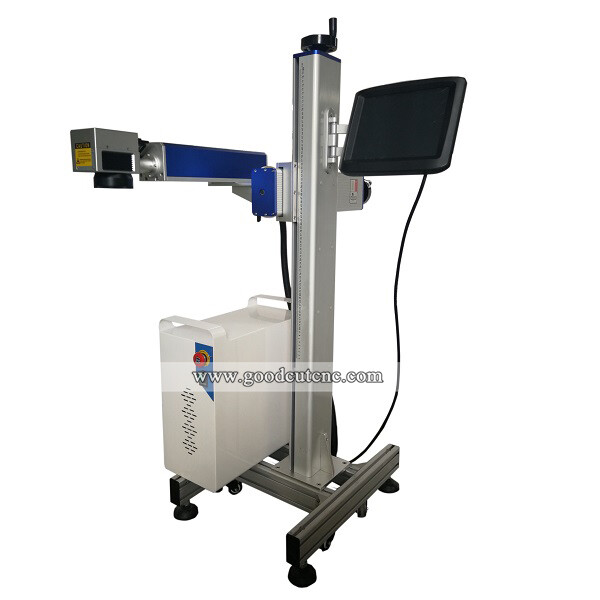

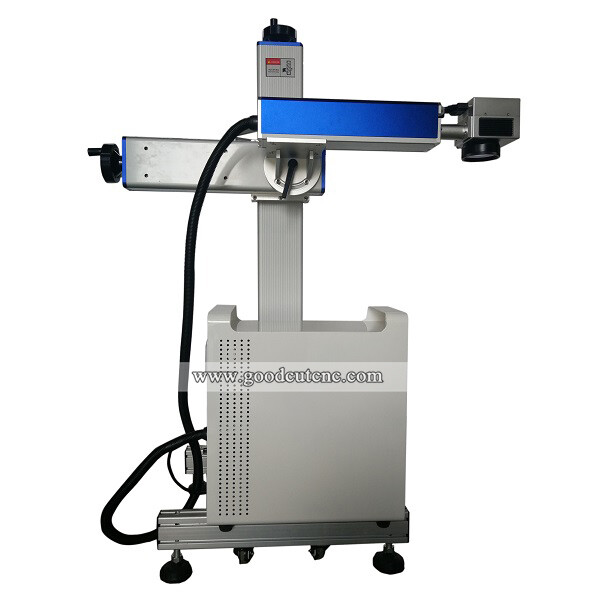

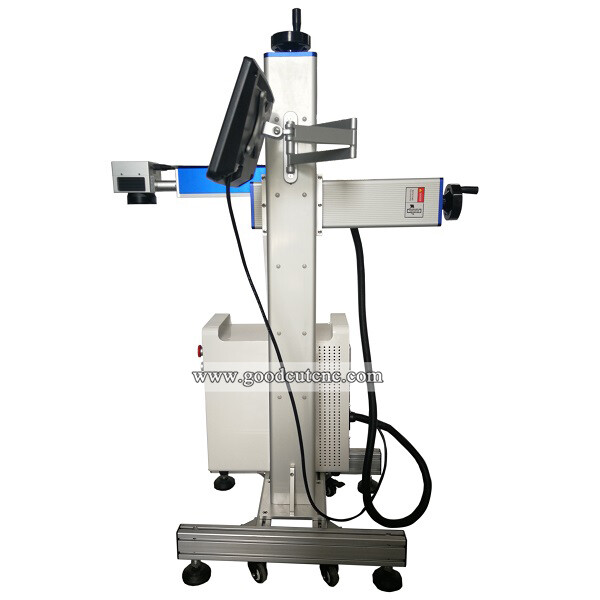

Belt Conveyor Flying Marking Machine

Marking area: 110*110mm/ 200*200mm/300*300mm
Laser Power: fiber 10W/20W/30W/50W, co2 80w 100w
Laser source: IPG/RAYCUS/Chuangxin/MAX
Process material: All Metal, Part of Plastic
Product description: flying online belt conveyor laser marking machine, fiber or co2 fly marking machine.
Product Description

Belt transmission and Fly marking for production line plastic metal

Tell us your requirement, we offer customized Fiber laser marking machine conveyor belt for high-efficiency mass production

20200321135137_15156



Easy to operation and mark for metal , stainless steel for series number , production date

GoodCut Flying Laser Marking Printing Machine 30W is laser marking printer especially matched for the automatic production line for flying printing & marking for the date codes or barcodes.

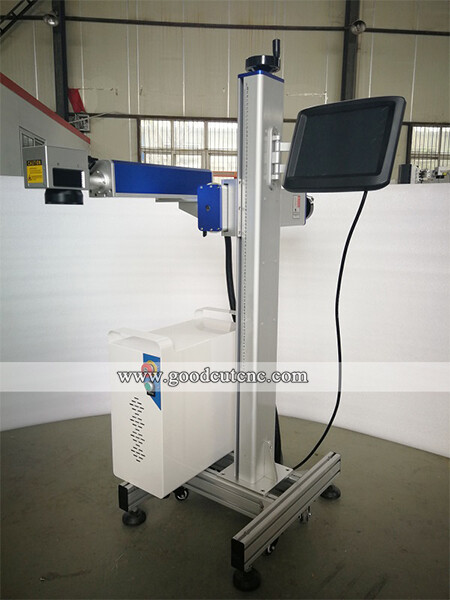

20200321135521_52023


Compared to the traditional inkjet printer, Flying Laser marking printer has zero consumption of any materials, no need ink, no pollution, no noise, energy saving and environmental protective.

GoodCut Flying Laser Marking Printer can be equipped with different kinds of laser sources (fiber, co2, or UV) and printer system. It can be widely used in food and beverage, pharmaceutical, tobacco, leather industry.

20200321135557_65270



Main features of fiber laser marking machine 20w:

1. Fiber laser(German IPG brand or China fiber laser optional)

2. High speed galvo scanner(import or china brand optional)

3. No maintenance laser source: service time 100,000 hours.

4. Higher precision,faster speed

5. Small size,low power consumption

6. Red light preview:show the marking position before laser

7. Notebook with Powerful software

8. User friendly interface, easy operation

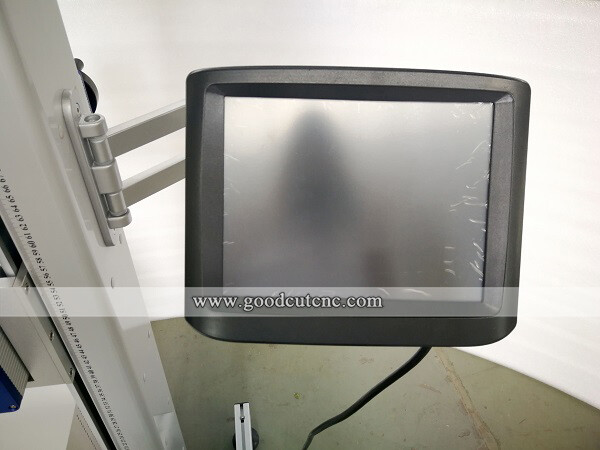

20200321135744_61053

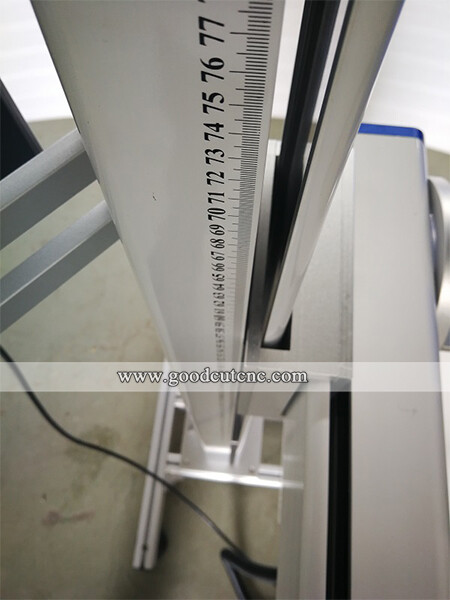

20200321135722_31817

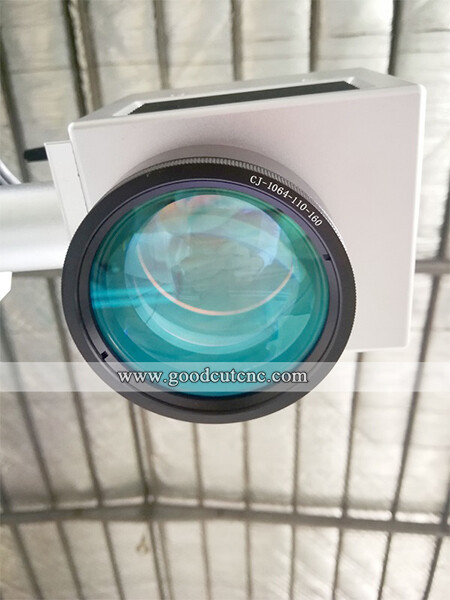

20200321135707_50223

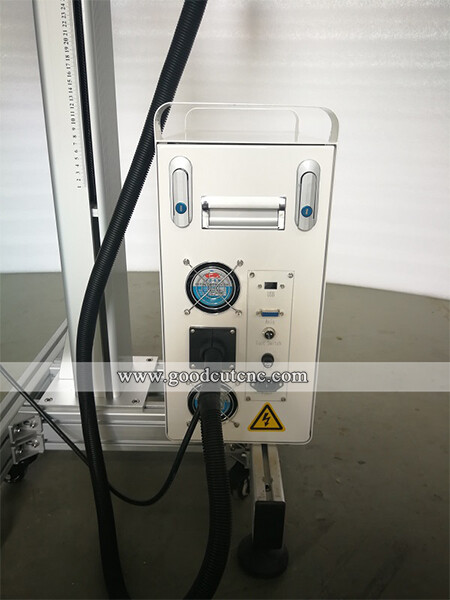

20200321135807_82186

Item Name

Technical Parameter

Model

GC-FM 20W

GC-FM 30W

GC-FM 50W

Laser power

20W

30W

50W

Laser wavelength

1064nm

Laser type

IPG/Raycus/MAX laser source

Max Pulse Energy

0.5m J

Repeat frequency

1KHz-1000KHz

Pulse width

6-250 ns

Marking depth

0.01-0.5mm

Marking area

70*70mm/110*110mm/175*175mm/200*200mm

Rated power consumption

500W

800W

1200W

Operating voltage

110V- 240V/50-60 Hz/15A

Cooling

Air Cooling

Packing size

890*430*860 mm (L*W*H)

Gross weight

80 KG

Package

Standard export wooden case


Fiber Laser Marking Machine is used for marking Mobile phone keypads, non-opaque-plastic keypads, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary wares, tool accessories, cutters, watches, glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products, etc.
