• Fiber Laser Marking Machine

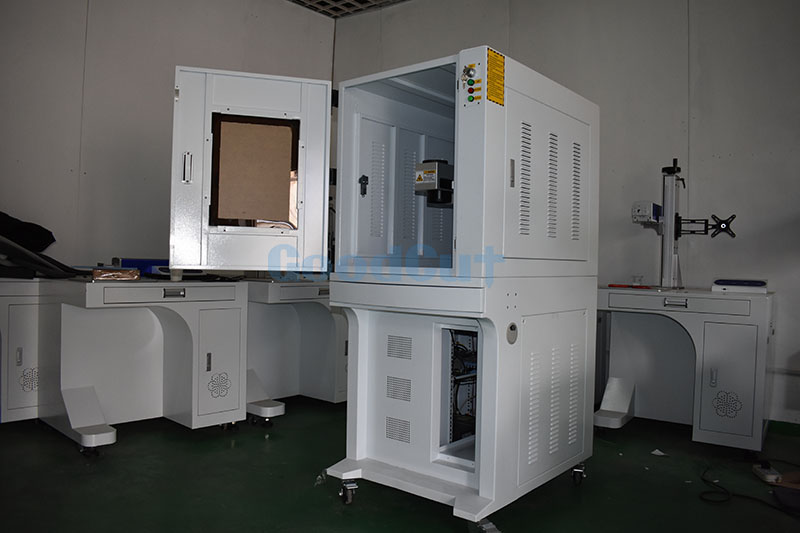

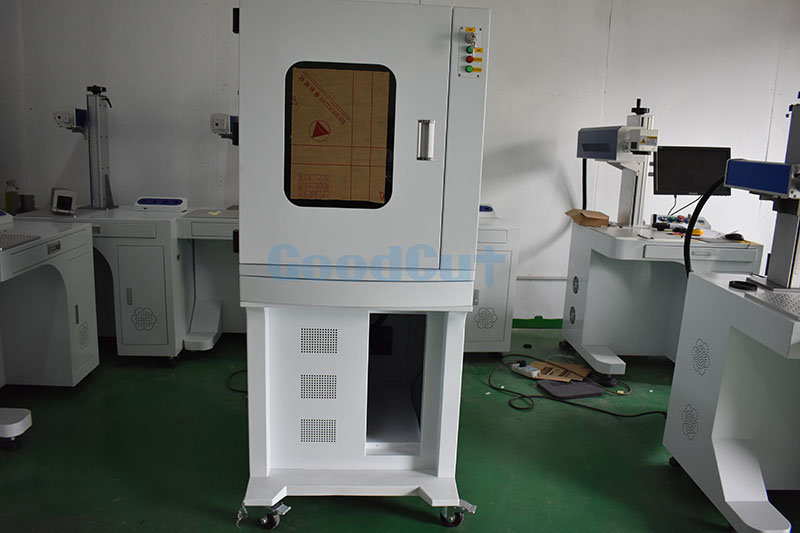

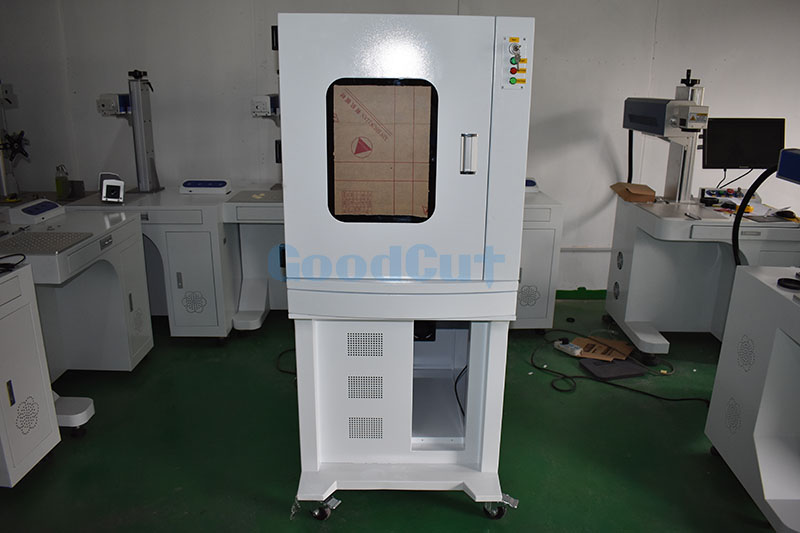

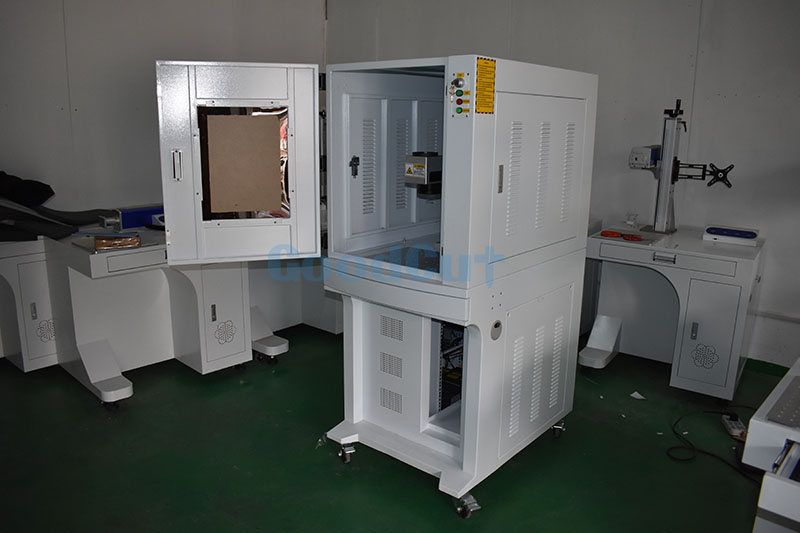

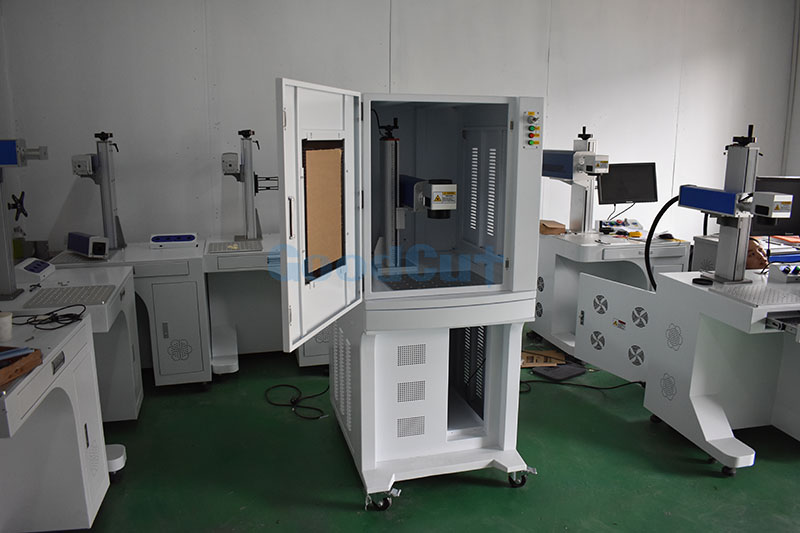

Whole Cover Fiber Laser Marking Machine GC1010

Marking size: 110mm*110mm
Laser power: 20W/ 30W/ 50W
Laser sources: Raycus, Germany IPG
Process material: metal and part of nonmetal
Product description: fiber laser marking machine, Raycus or IPG 20w/ 30w/ 50w laser power marking machine Original EZCAD USB board
Product Description

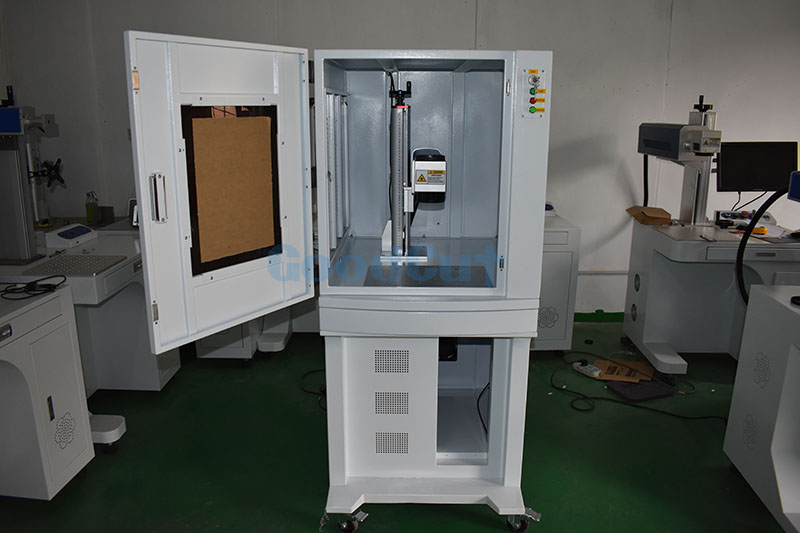

fiber marking machine (1)

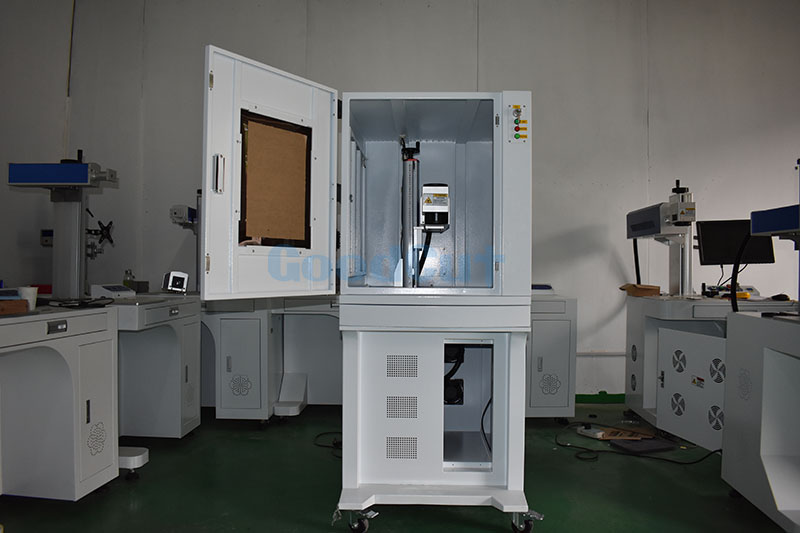

fiber marking machine (2)

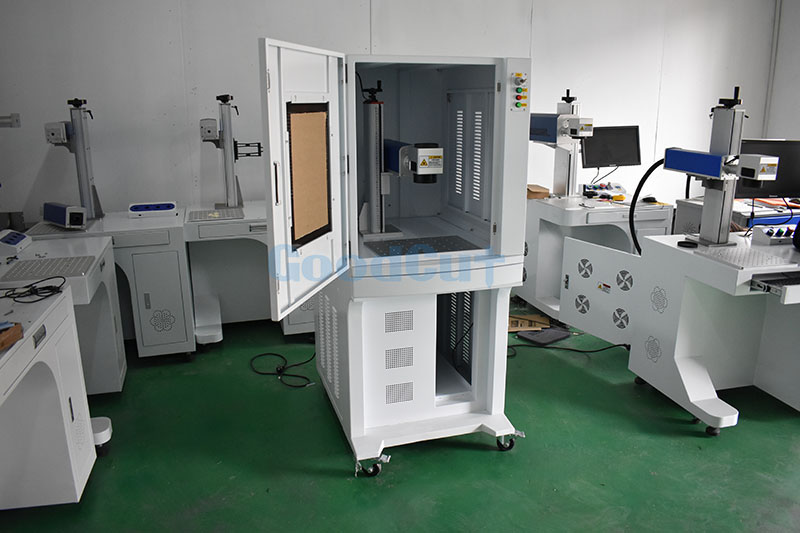

fiber marking machine (3)


The fiber laser marking machine From GoodCut allow manufacturers to mark or engrave barcodes, serial numbers, 2D Data Matix and graphics on

the widest variety of materials including metals, plastics and ceramics and leave permanent marking.


Main Features:

1)Low consumption,non-toxic,no pollution,high performance price ratio.

2)Imported isolator for protection of the fiber laser generator to increase the stability and prolong the laser life.


3)Laser beam quality is much better than the traditional laser marking machine.


4)Free from maintance, long working life, small size, suitable for any working environment



Parameter:

Product NameFiber Marking Laser Machine For Metal
Laser TypeFiber
ModolGC1010
CertificatonsCE
Power20W 30w 50w 100w
BrandGoodCut
Country of OriginCHINA
Work PrecisionCHINA
Support FormatPLT, DST, AI, DXF, BMP, JPG, CAD,CDR, DWG,PCX
SoftwareEZCAD
Cooling WayAIR COOLING
NCYES
ConditionNEW
Work Area (mm)110x110-500x500mm
Min Line Width0.017mm
Min Character0.15mmx0.15mm
Wavelength1064nm
After-ServiceEngineers available to service machinery overseas
Laser Repetition Frequency20KHz-80KHz(adjustable)
Power DemandAC220V/50HZ/2A
Optimum Working Temperature10-35 °C
Marking Depth0.01-1.0mm(subjejct to material)

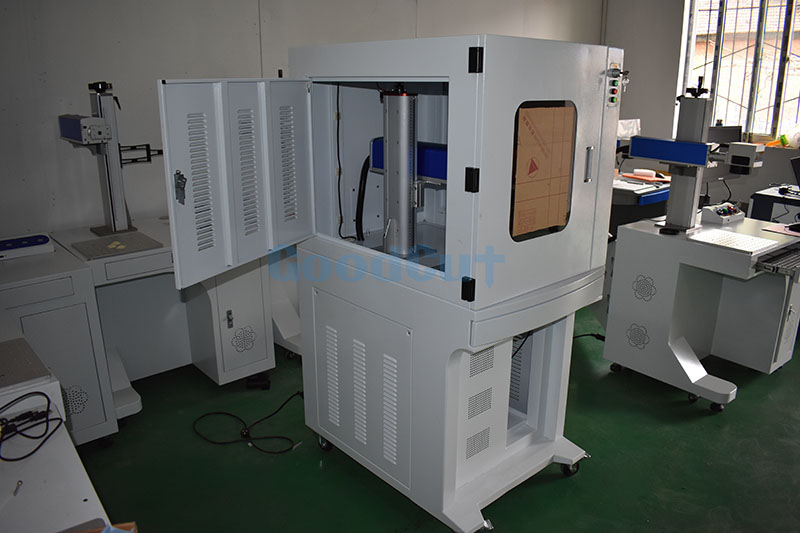

fiber marking machine (15)

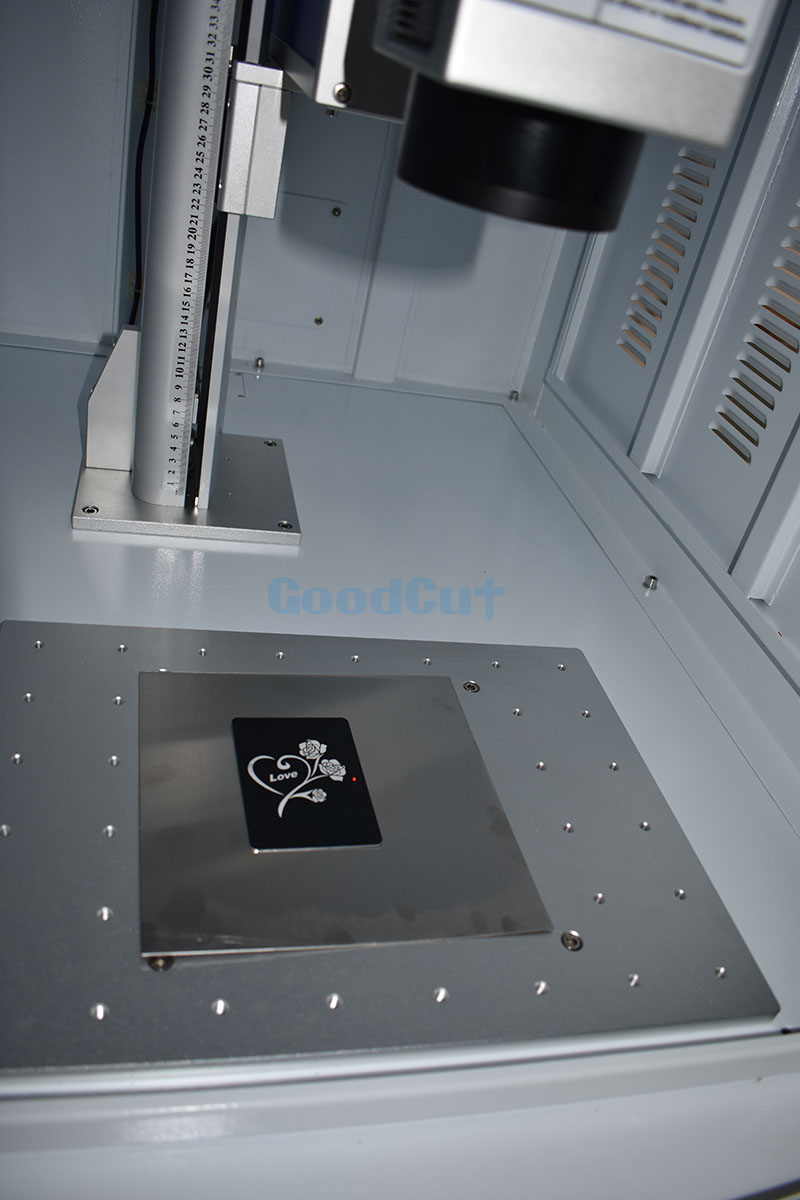

fiber marking machine (24)

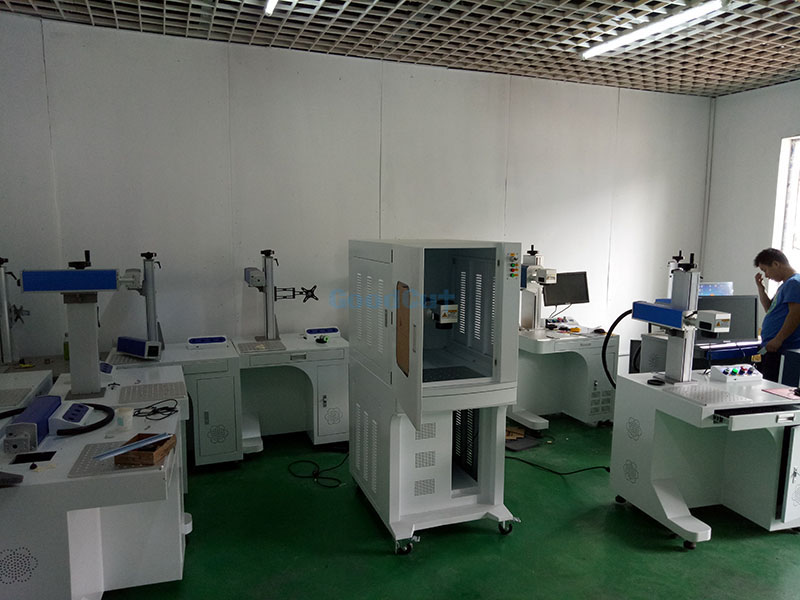

fiber marking machine with protector (16)

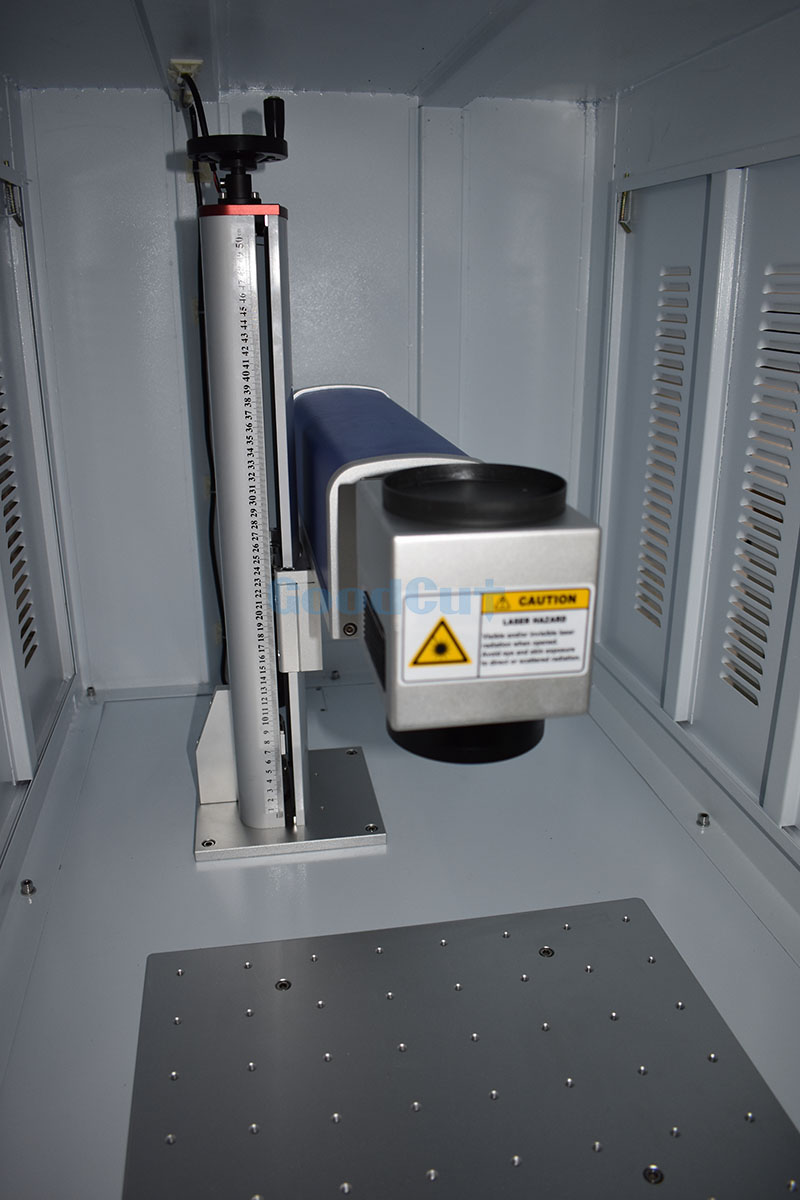

fiber marking machine (22)

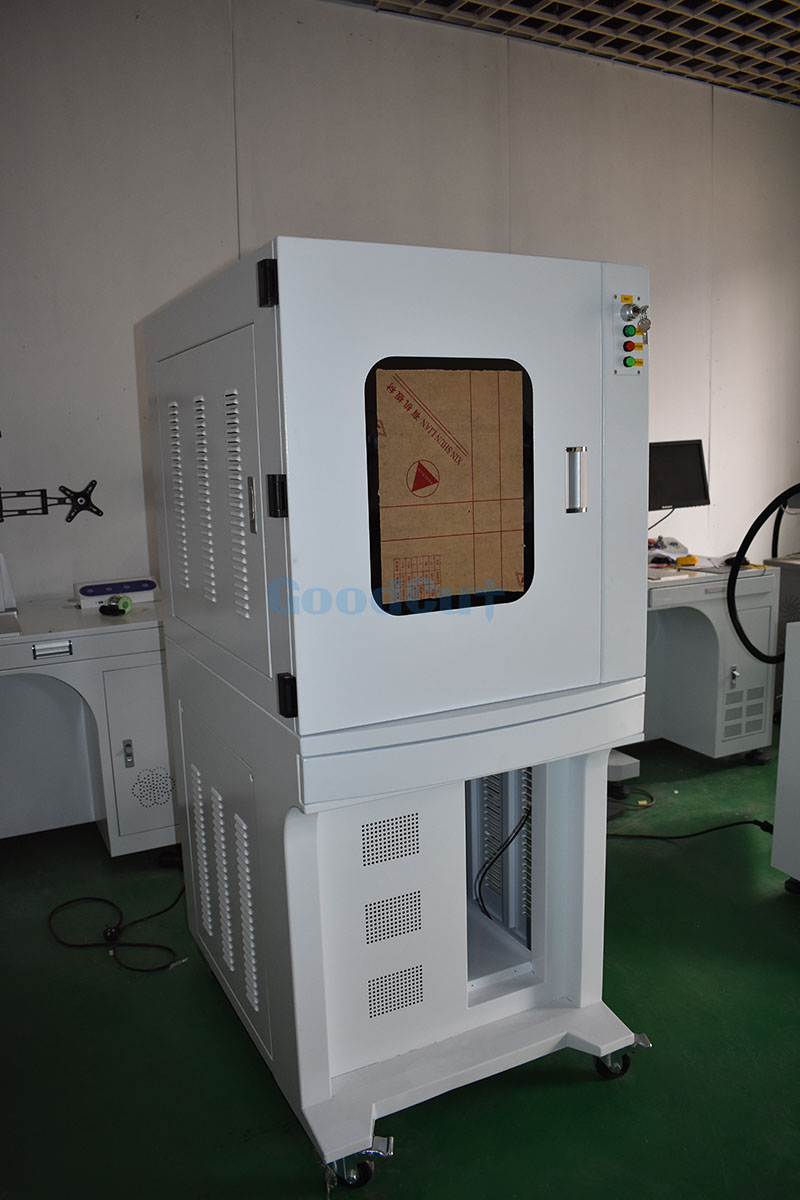

fiber marking machine (18)
