GC-SWC Solid Wood Cutting Machine for Solid Wood Furniture Production
Solid wood cutting
Furniture making
Max cutting thickness 150mm
Cutting length 1.5m
Product description: Solid wood cutting Furniture making
Iquiry
Contact
Product Description

GC-SWC Solid Wood Cutting Machine for Solid Wood Furniture Production

Specification:

Main PartsMain parts name
SystemCNC Solid wood cutting machine customized system
MotorIVT servo motor 1.5kw and 750W
Guide lineTaiwan Hiwin 25mm guide line
InverterE&T 15KW
Ball ScrewTaiwan TBI screw
ReducerJapan shimpo 1:10 and 1:8
Machine bodyRear wall square pipe welding failure treatment

Product Paramenters:

ModelGC-WC1500GC-WC2000GC-WC2500
Machine size(mm)2100*2600*18002600*2600*18003100*2600*1800
Max working length1500 mm2000 mm2500 mm
Max working width1500mm1500mm1500mm
Max working thickness10—150mm10—150mm10—150mm
Running speed10000 mm/min10000 mm/min10000 mm/min
Max working speed8000mm/min8000mm/min8000mm/min
Machine power14.5KW14.5KW14.5KW
Spindle rotate speed18000rpm18000rpm18000rpm
Spindle9.7KW9.7KW9.7KW
Working accuracy0.1mm0.1mm0.1mm
Single wood max working diameter500mm500mm500mm

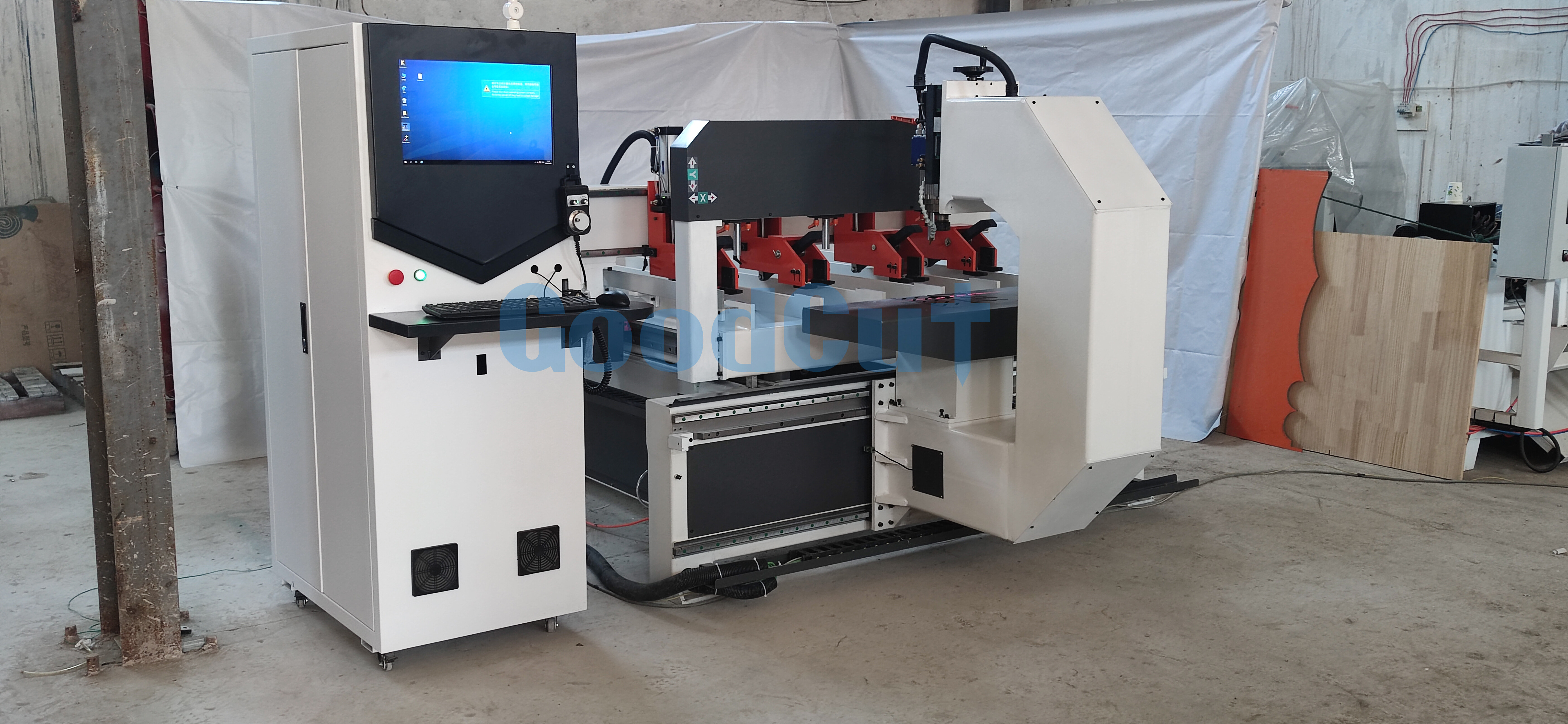

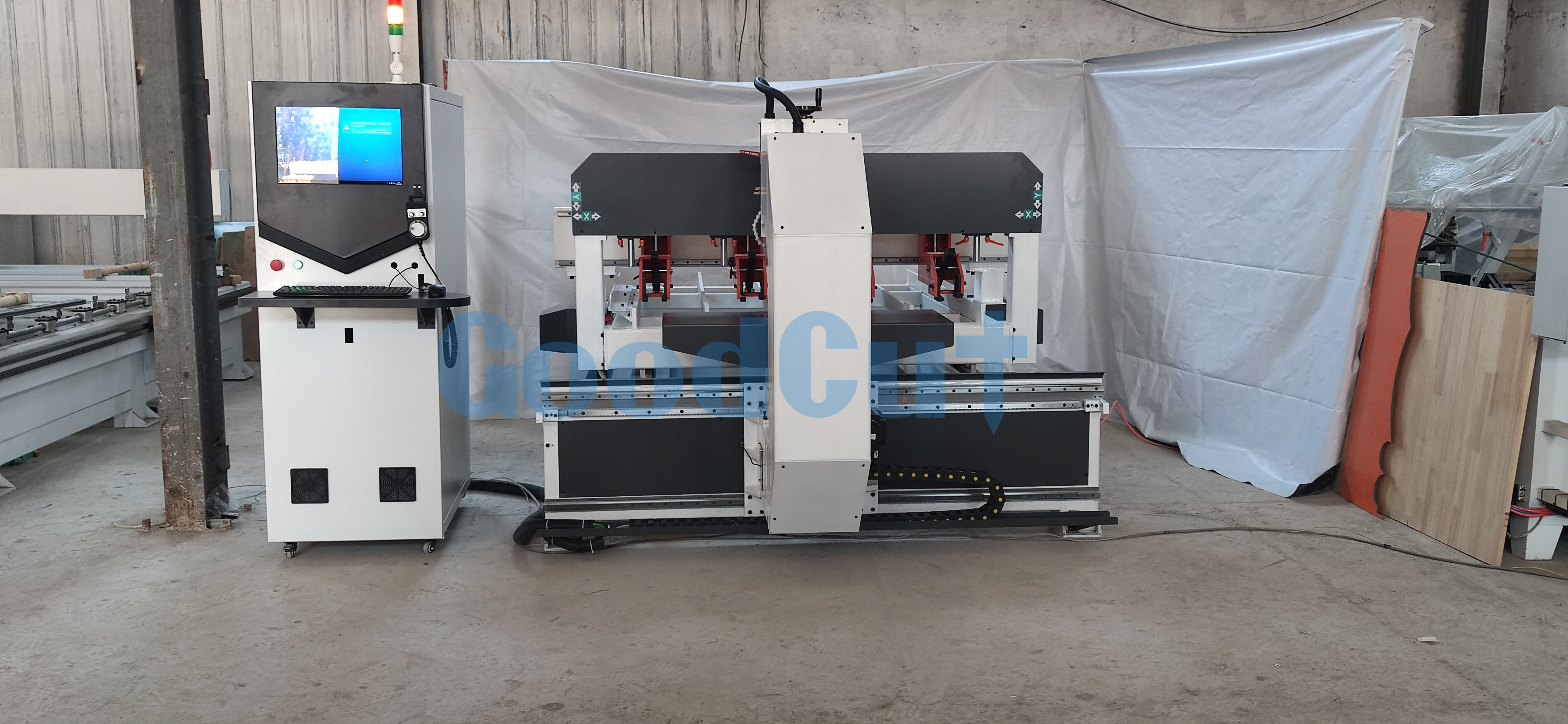

GC-SWC Solid Wood Cutting Machine for Solid Wood Furniture Production 2.jpg


GC-SWC Solid Wood Cutting Machine for Solid Wood Furniture Production 1.jpg


Tools Parameter:

Tool length (mm)Cutter blade length(mm)Handle diameter(mm)Working wood thickness(mm)
1206040-60
1508060-80
20013080-130
23015580-150

Advantages:

1. Automatic processing operation and stable quality, improve efficiency exponentially and lay ground work for lather
processing operation which will smooth and speed processing line.
2. Use Germany Numerical control system, with high precision and more stable.
3. Advanced CNC system,simple and easy control.Only with basic CAD knowledge,technicians operated the machine easily without the other software application.
4. Strong cylinder fixtures, the clamping device is reliable, clamping range is wide, it can saw the multi-layer sheet
synchronously.

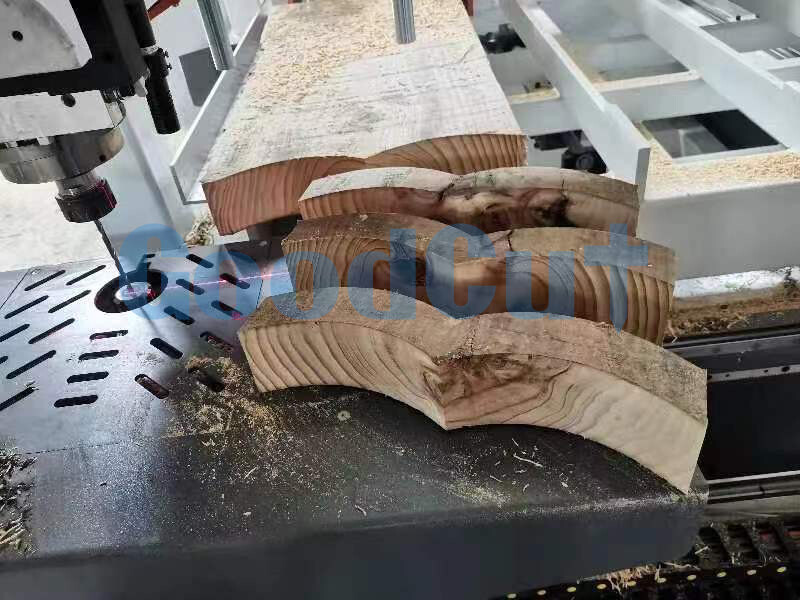

Samples:

GC-SWC Solid Wood Cutting Machine for Solid Wood Furniture Production Sample.jpg
